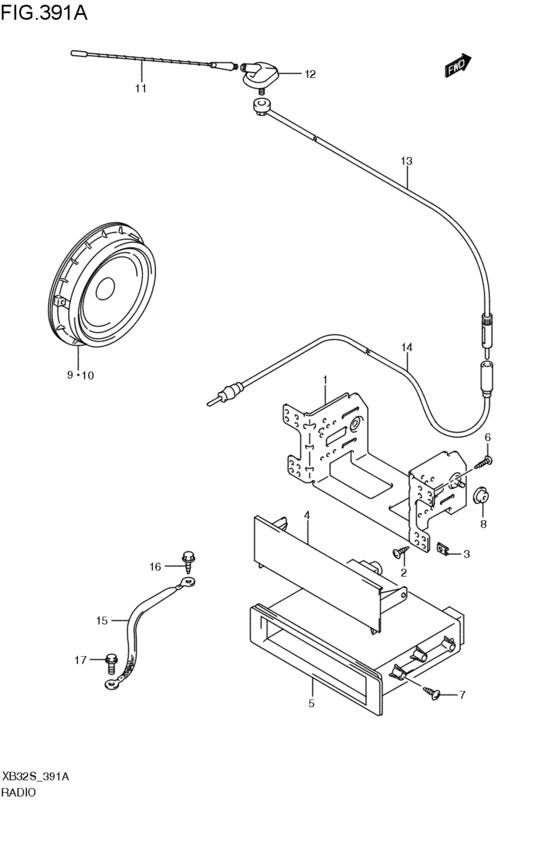

radio (2008-06-01~)
19
| # | OEM | Part name |
|---|
| 1 |
39321-51K10-000 |
BRACKET,TUNER |
| 2 |
03541-0516A-000 |
SCREW |
| 3 |
09148-05045-000 |
NUT |
| 4 |
39161-80J00-000 |
COVER,RADIO HOLE |
| 5 |
39182-80J00-000 |
Pocket,tuner |
| 5 |
39182-80J10-000 |
POCKET,TUNER |
| 6 |
03241-0512A-000 |
SCREW |
| 7 |
03541-0512A-000 |
SCREW |
| 8 |
34955-51K00-000 |
BUSH,TUNER BRACKET |
| 9 |
39102-51KB0-000 |
スピーカアッシ,ライト |
| 9 |
39102-68L11-000 |
New Genuine Part |
| 10 |
39102-51KA0-000 |
スピーカアッシ,レフト |
| 11 |
39251-63J00-000 |
ROD,ANTENNA |
| 12 |
39253-65JA0-000 |
ベース,アンテナ |
| 13 |
39271-51K10-000 |
フィーダ,アンテナルーフ |
| 14 |
39270-51K10-000 |
フィーダ,アンテナインストゥルメントパネル |
| 15 |
39312-78F10-000 |
WIRE,NOISE SUPPR |
| 16 |
09115-06005-000 |
BOLT(6X16) |
| 17 |
09103-06168-000 |
BOLT(6X10) |
| OEM |
Part name |
Category |
| 03241-0512A-000 |
SCREW |
radio (2008-06-01~) |
| 03541-0512A-000 |
SCREW |
radio (2008-06-01~) |
| 03541-0516A-000 |
SCREW |
radio (2008-06-01~) |
| 09103-06168-000 |
BOLT(6X10) |
radio (2008-06-01~) |
| 09115-06005-000 |
BOLT(6X16) |
radio (2008-06-01~) |
| 09148-05045-000 |
NUT |
radio (2008-06-01~) |
| 34955-51K00-000 |
BUSH,TUNER BRACKET |
radio (2008-06-01~) |
| 39102-51KA0-000 |
スピーカアッシ,レフト |
radio (2008-06-01~) |
| 39102-51KB0-000 |
スピーカアッシ,ライト |
radio (2008-06-01~) |
| 39102-68L11-000 |
New Genuine Part |
radio (2008-06-01~) |
| 39161-80J00-000 |
COVER,RADIO HOLE |
radio (2008-06-01~) |
| 39182-80J00-000 |
Pocket,tuner |
radio (2008-06-01~) |
| 39182-80J10-000 |
POCKET,TUNER |
radio (2008-06-01~) |
| 39251-63J00-000 |
ROD,ANTENNA |
radio (2008-06-01~) |
| 39253-65JA0-000 |
ベース,アンテナ |
radio (2008-06-01~) |
| 39270-51K10-000 |
フィーダ,アンテナインストゥルメントパネル |
radio (2008-06-01~) |
| 39271-51K10-000 |
フィーダ,アンテナルーフ |
radio (2008-06-01~) |
| 39312-78F10-000 |
WIRE,NOISE SUPPR |
radio (2008-06-01~) |
| 39321-51K10-000 |
BRACKET,TUNER |
radio (2008-06-01~) |
