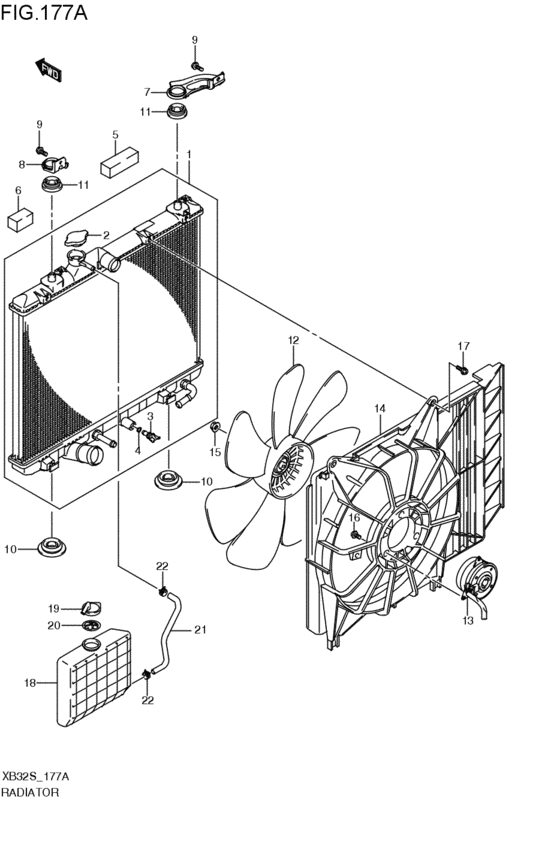

| 02142-0510A-000 |
SCREW - Bolt, oil pump rotor plate |
radiator (2008-06-01~) |
| 02142-0510B-000 |
SCREW - Bolt |
radiator (2008-06-01~) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
radiator (2008-06-01~) |
| 02162-0616A-000 |
SCREW |
radiator (2008-06-01~) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
radiator (2008-06-01~) |
| 08316-2005A-000 |
NUT |
radiator (2008-06-01~) |
| 09401-11415-000 |
CLIP |
radiator (2008-06-01~) |
| 17111-62J00-000 |
FAN,COOLING |
radiator (2008-06-01~) |
| 17120-62JB0-000 |
MOTOR ASSY,FAN |
radiator (2008-06-01~) |
| 17700-73KC0-000 |
ラジエータアッシ |
radiator (2008-06-01~) |
| 17751-61A00-000 |
PLUG,DRAIN |
radiator (2008-06-01~) |
| 17759-72010-000 |
O-RING |
radiator (2008-06-01~) |
| 17760-73KB0-000 |
SHROUD ASSY |
radiator (2008-06-01~) |
| 17791-51K00-000 |
SEAL,RADIATOR NO.1 |
radiator (2008-06-01~) |
| 17792-63J00-000 |
SEAL,RADIATOR NO.2 |
radiator (2008-06-01~) |
| 17861-73K00-000 |
BRACKET,RDTR SUPPORT UPPER,R |
radiator (2008-06-01~) |
| 17862-73K00-000 |
BRACKET,RDTR SUPPORT UPPER,L |
radiator (2008-06-01~) |
| 17878-75F00-000 |
MOUNT,RDTR SUPPORT LWR |
radiator (2008-06-01~) |
| 17879-83E00-000 |
MOUNT,RDTR SUPPORT UPR |
radiator (2008-06-01~) |
| 17920-75F00-000 |
CAP,RADIATOR |
radiator (2008-06-01~) |
| 17931-62J00-000 |
TANK,WATER RESERVE |
radiator (2008-06-01~) |
| 17932-63J00-000 |
CAP,WATER RESERVE TANK |
radiator (2008-06-01~) |
| 17933-62J00-000 |
SEAL,WATER RSVR TANK |
radiator (2008-06-01~) |
| 17939-51KA0-000 |
Hose, radiator to rsv tank |
radiator (2008-06-01~) |
| 17939-51KA1-000 |
HOSE,RDTR TO RSV TANK |
radiator (2008-06-01~) |
