XB32S

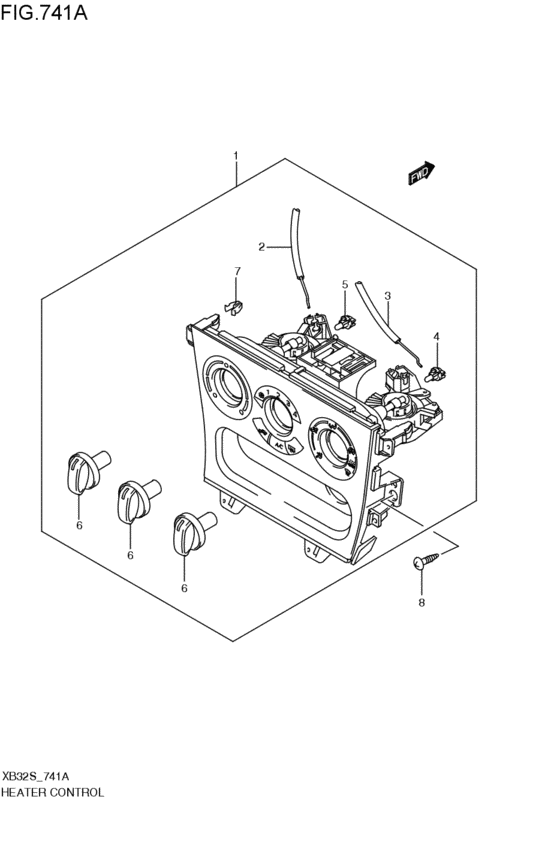

heater control (2008-06-01~) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 74400-51K40-EZR | コントロールユニット,ヒータ(シルバー/グレー) |
| 2 | 74452-51K00-000 | CABLE,TEMP CONT(BLUE) |
| 3 | 74451-51K00-000 | CABLE,MODE CONT(WHITE) |
| 4 | 74531-62J00-000 | BULB,W/RED CAP |
| 5 | 74532-86G00-000 | BULB(CLEAR) |
| 6 | 74461-51K00-000 | KNOB,HTR CONT |
| 7 | 09409-08342-000 | CLIP |
| 8 | 03541-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03541-0516A-000 | SCREW | heater control (2008-06-01~) |
| 09409-08342-000 | CLIP | heater control (2008-06-01~) |
| 74400-51K40-EZR | コントロールユニット,ヒータ(シルバー/グレー) | heater control (2008-06-01~) |
| 74451-51K00-000 | CABLE,MODE CONT(WHITE) | heater control (2008-06-01~) |
| 74452-51K00-000 | CABLE,TEMP CONT(BLUE) | heater control (2008-06-01~) |
| 74461-51K00-000 | KNOB,HTR CONT | heater control (2008-06-01~) |
| 74531-62J00-000 | BULB,W/RED CAP | heater control (2008-06-01~) |
| 74532-86G00-000 | BULB(CLEAR) | heater control (2008-06-01~) |
