XB32S

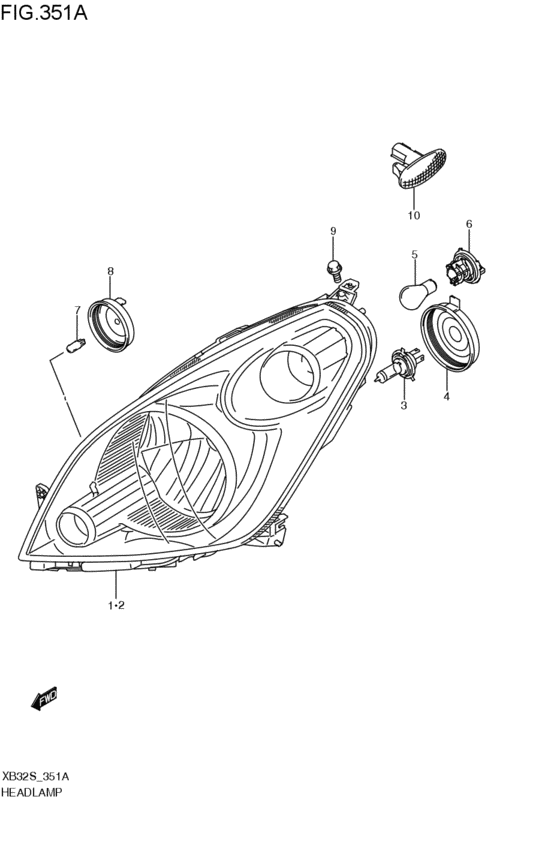

head lamp (2008-06-01~) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-51K11-000 | UNIT,HEADLAMP,R |
| 2 | 35320-51K11-000 | UNIT,HEADLAMP,L |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35125-51K00-000 | COVER,SOCKET |
| 5 | 09471-12186-000 | BULB(12V21W,AMBER) |
| 6 | 35618-51K00-000 | SOCKET,TURN LAMP |
| 7 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 7 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 8 | 35125-51K10-000 | COVER,POSITION LAMP SOCKET |
| 9 | 09122-76006-000 | SCREW(6X16) |
| 10 | 36410-51K00-000 | LAMP ASSY,TURN SIG |
| OEM | Part name | Category |
|---|---|---|
| 09122-76006-000 | SCREW(6X16) | head lamp (2008-06-01~) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | head lamp (2008-06-01~) |
| 09471-12182-000 | BULB(12V60/55W,H4) | head lamp (2008-06-01~) |
| 09471-12186-000 | BULB(12V21W,AMBER) | head lamp (2008-06-01~) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | head lamp (2008-06-01~) |
| 35120-51K11-000 | UNIT,HEADLAMP,R | head lamp (2008-06-01~) |
| 35125-51K00-000 | COVER,SOCKET | head lamp (2008-06-01~) |
| 35125-51K10-000 | COVER,POSITION LAMP SOCKET | head lamp (2008-06-01~) |
| 35320-51K11-000 | UNIT,HEADLAMP,L | head lamp (2008-06-01~) |
| 35618-51K00-000 | SOCKET,TURN LAMP | head lamp (2008-06-01~) |
| 36410-51K00-000 | LAMP ASSY,TURN SIG | head lamp (2008-06-01~) |
