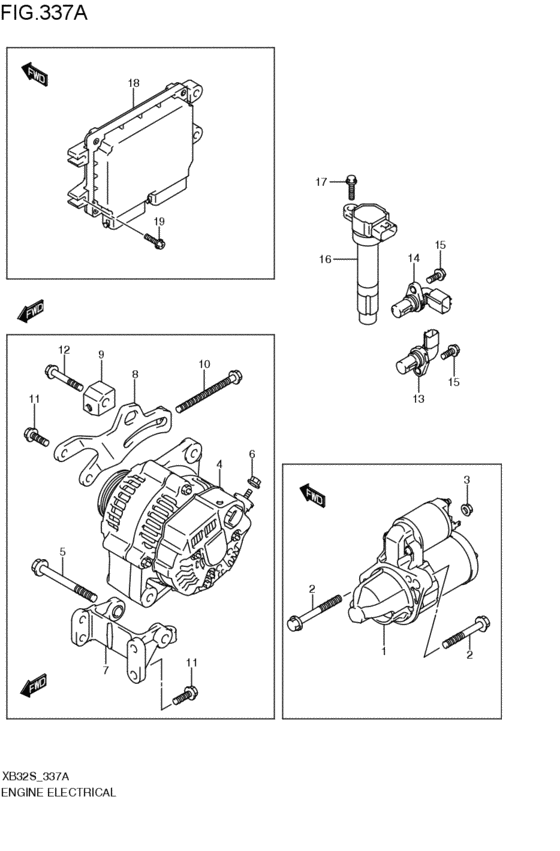

| 01550-0825A-000 |
Bolt |
engine electrical (2008-06-01~) |
| 01550-0850A-000 |
Bolt |
engine electrical (2008-06-01~) |
| 01550-1060A-000 |
Bolt |
engine electrical (2008-06-01~) |
| 01550-1085A-000 |
Bolt |
engine electrical (2008-06-01~) |
| 02162-0625A-000 |
SCREW |
engine electrical (2008-06-01~) |
| 08316-1006A-000 |
NUT |
engine electrical (2008-06-01~) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
engine electrical (2008-06-01~) |
| 09103-06283-000 |
BOLT(6X16) |
engine electrical (2008-06-01~) |
| 09135-06024-000 |
BOLT(6X23) |
engine electrical (2008-06-01~) |
| 11550-51K00-000 |
BRACKET,GENERATOR |
engine electrical (2008-06-01~) |
| 11561-51K00-000 |
ARM,GENERATOR BELT ADJUST |
engine electrical (2008-06-01~) |
| 11562-77A01-000 |
ADJUSTER,GEN BELT |
engine electrical (2008-06-01~) |
| 11563-77A01-000 |
BOLT,GEN BELT ADJ |
engine electrical (2008-06-01~) |
| 31100-51K00-000 |
Motor assy, starting |
engine electrical (2008-06-01~) |
| 31400-80J00-000 |
Generator assy |
engine electrical (2008-06-01~) |
| 31400-80J01-000 |
GENERATOR ASSY |
engine electrical (2008-06-01~) |
| 31400-80J02-000 |
Generator Assy |
engine electrical (2008-06-01~) |
| 31400-80J03-000 |
Generator Assy |
engine electrical (2008-06-01~) |
| 33220-50M00-000 |
SENSOR ASSY,POSITION |
engine electrical (2008-06-01~) |
| 33220-51K00-000 |
SENSOR ASSY,POSITION |
engine electrical (2008-06-01~) |
| 33220-58J20-000 |
SENSOR ASSY,POSITION |
engine electrical (2008-06-01~) |
| 33220-64L10-000 |
SENSOR ASSY,POSITION |
engine electrical (2008-06-01~) |
| 33400-51K10-000 |
COIL ASSY,IGNITION |
engine electrical (2008-06-01~) |
| 33400-51K80-000 |
IGNITION COIL AZG412 AKK416 |
engine electrical (2008-06-01~) |
| 33920-51K30-000 |
コントローラアッシ,インジェクション/エアコン |
engine electrical (2008-06-01~) |
| 33920-51K32-000 |
CONTROLLER ASSY,EPI-A/C |
engine electrical (2008-06-01~) |
