WY30

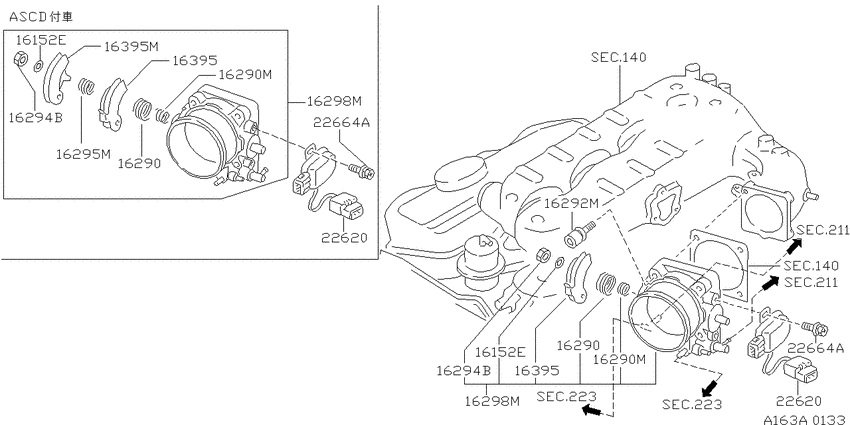

Throttle chamber (1997-08-01 ~ ; VG20E) 9
| # | OEM | Part name |
|---|---|---|
| 16152 | 16152-97E15 | WASHER |
| 16290 | 16160-02F00 | Spring-Throttle Return |
| 16290 | 16160-02F02 | Spring-Throttle Return |
| 16295 | 16160-17F05 | Spring-Throttle Return |
| 16298 | 16118-V5203 | Throttle Body |
| 16298 | 16118-V5213 | Throttle Body |
| 16395 | 16134-V5201 | Lever-Throttle |
| 16395 | 16134-17F05 | Lever-Ascd |
| 22664 | 01436-00501 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01436-00501 | SCREW | Throttle chamber (1997-08-01 ~ ; VG20E) |
| 16118-V5203 | Throttle Body | Throttle chamber (1997-08-01 ~ ; VG20E) |
| 16118-V5213 | Throttle Body | Throttle chamber (1997-08-01 ~ ; VG20E) |
| 16134-17F05 | Lever-Ascd | Throttle chamber (1997-08-01 ~ ; VG20E) |
| 16134-V5201 | Lever-Throttle | Throttle chamber (1997-08-01 ~ ; VG20E) |
| 16152-97E15 | WASHER | Throttle chamber (1997-08-01 ~ ; VG20E) |
| 16160-02F00 | Spring-Throttle Return | Throttle chamber (1997-08-01 ~ ; VG20E) |
| 16160-02F02 | Spring-Throttle Return | Throttle chamber (1997-08-01 ~ ; VG20E) |
| 16160-17F05 | Spring-Throttle Return | Throttle chamber (1997-08-01 ~ ; VG20E) |
