Search › Model › WY30
WY30

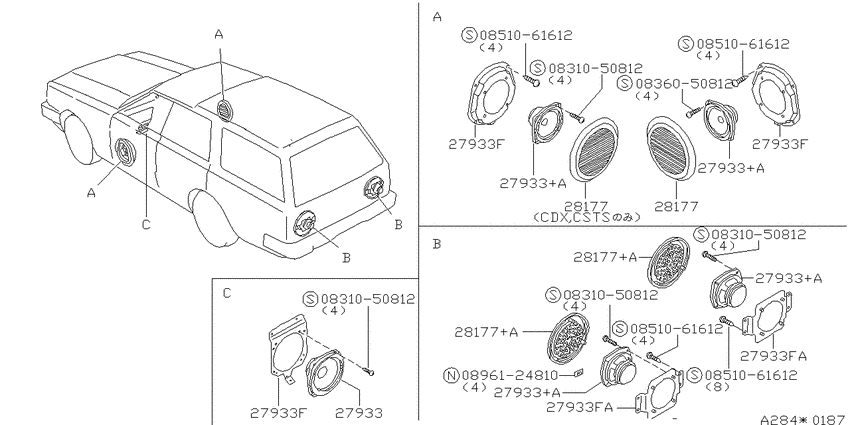

Speaker (1997-08-01 ~ ; W +V) 13
| # | OEM | Part name |
|---|---|---|
| 27933 | 28155-04E00 | SPEAKER UNIT |
| 27933 | 28155-D0400 | Speaker Unit |
| 27933 | 28166-V5010 | Bracket-Speaker |
| 27933 | 28163-V6000 | Bracket-Speaker |
| 27933 | 27944-U7800 | Speaker Unit |
| 28177 | 28177-V6000 | Grille-Speaker, Front |
| 28177 | 28177-V6001 | Grille-Speaker, Front |
| 28177 | 28177-V5500 | Grille-Speaker, Front |
| 28177 | 28177-V5501 | Grille-Speaker, Front |
| 28177 | 28177-V5502 | Grille-Speaker, Front |
| 831050812 | 08310-50812 | スクリユ-,マシン |
| 836050812 | 08360-50812 | スクリユ-,マシン |
| 896124810 | 08961-24810 | ナツト,スプリング |
| OEM | Part name | Category |
|---|---|---|
| 08310-50812 | スクリユ-,マシン | Speaker (1997-08-01 ~ ; W +V) |
| 08360-50812 | スクリユ-,マシン | Speaker (1997-08-01 ~ ; W +V) |
| 08961-24810 | ナツト,スプリング | Speaker (1997-08-01 ~ ; W +V) |
| 27944-U7800 | Speaker Unit | Speaker (1997-08-01 ~ ; W +V) |
| 28155-04E00 | SPEAKER UNIT | Speaker (1997-08-01 ~ ; W +V) |
| 28155-D0400 | Speaker Unit | Speaker (1997-08-01 ~ ; W +V) |
| 28163-V6000 | Bracket-Speaker | Speaker (1997-08-01 ~ ; W +V) |
| 28166-V5010 | Bracket-Speaker | Speaker (1997-08-01 ~ ; W +V) |
| 28177-V5500 | Grille-Speaker, Front | Speaker (1997-08-01 ~ ; W +V) |
| 28177-V5501 | Grille-Speaker, Front | Speaker (1997-08-01 ~ ; W +V) |
| 28177-V5502 | Grille-Speaker, Front | Speaker (1997-08-01 ~ ; W +V) |
| 28177-V6000 | Grille-Speaker, Front | Speaker (1997-08-01 ~ ; W +V) |
| 28177-V6001 | Grille-Speaker, Front | Speaker (1997-08-01 ~ ; W +V) |
