WY30

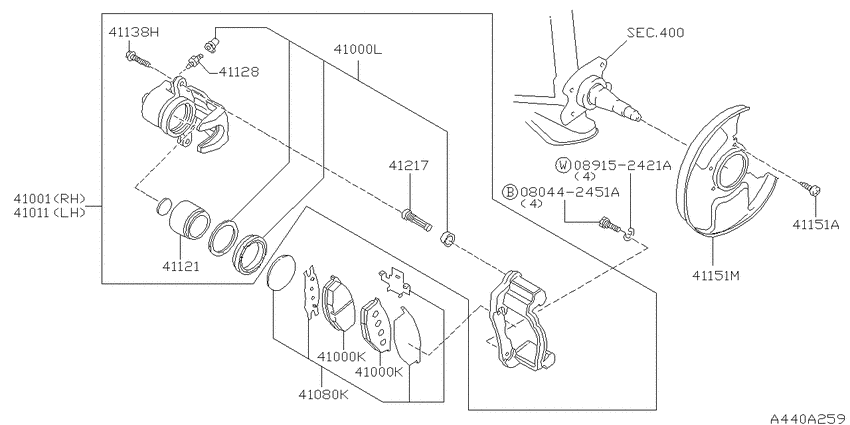

Front brake (1997-08-01 ~ ; VG20E) 10
| # | OEM | Part name |
|---|---|---|
| 41001 | 41001-09W00 | Caliper Assy-Front Rh, W/o Pads Or Shims |
| 41001 | 41001-09W0B | Caliper assy-front rh,w/o pads or shims |
| 41011 | 41011-09W00 | Caliper Assy-Front Lh, W/o Pads Or Shims |
| 41011 | 41011-09W0B | Caliper assy-front lh,w/o pads or shims |
| 41128 | 41128-U3400 | Screw-Bleeder |
| 41138 | 44141-N9500 | Pin-Bolt |
| 41151 | 43244-A0800 | Screw |
| 41151 | 41150-10V01 | Plate-Baffle |
| 41151 | 41160-10V01 | Plate-Baffle |
| 80442451 | 08044-2451A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08044-2451A | Bolt-hexagon | Front brake (1997-08-01 ~ ; VG20E) |
| 41001-09W00 | Caliper Assy-Front Rh, W/o Pads Or Shims | Front brake (1997-08-01 ~ ; VG20E) |
| 41001-09W0B | Caliper assy-front rh,w/o pads or shims | Front brake (1997-08-01 ~ ; VG20E) |
| 41011-09W00 | Caliper Assy-Front Lh, W/o Pads Or Shims | Front brake (1997-08-01 ~ ; VG20E) |
| 41011-09W0B | Caliper assy-front lh,w/o pads or shims | Front brake (1997-08-01 ~ ; VG20E) |
| 41128-U3400 | Screw-Bleeder | Front brake (1997-08-01 ~ ; VG20E) |
| 41150-10V01 | Plate-Baffle | Front brake (1997-08-01 ~ ; VG20E) |
| 41160-10V01 | Plate-Baffle | Front brake (1997-08-01 ~ ; VG20E) |
| 43244-A0800 | Screw | Front brake (1997-08-01 ~ ; VG20E) |
| 44141-N9500 | Pin-Bolt | Front brake (1997-08-01 ~ ; VG20E) |
