Search › Model › WY30
WY30

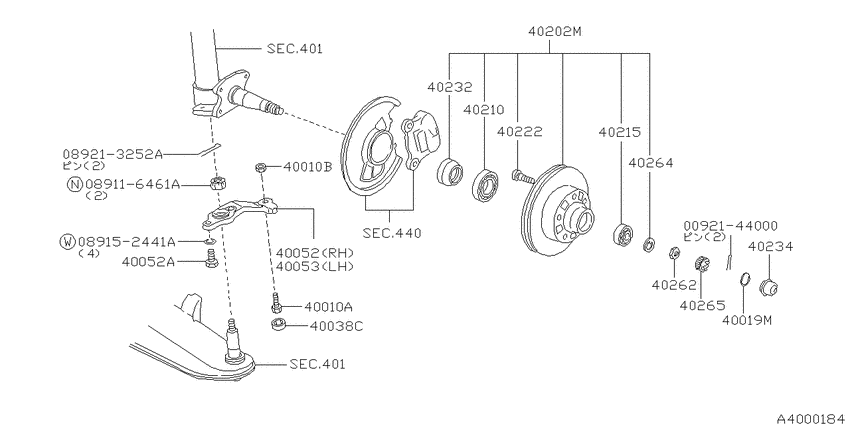

Front axle (1997-08-01 ~ ; VG20E) 7
| # | OEM | Part name |
|---|---|---|
| 40010 | 40038-V5000 | Bolt-Stopper |
| 40052 | 40052-V5001 | Arm-Knuckle, Rh |
| 40053 | 40053-V5001 | Arm-Knuckle, Lh |
| 40202 | 40207-V7052 | Hub Assy-Road Wheel, Front |
| 40215 | 40215-VL30A | Bearing Assy-Front Wheel |
| 89116461 | 08911-6461A | ナツト,ヘクサゴン |
| 92144000 | 00921-44000 | ピン,スプリツト コツタ- |
| OEM | Part name | Category |
|---|---|---|
| 00921-44000 | ピン,スプリツト コツタ- | Front axle (1997-08-01 ~ ; VG20E) |
| 08911-6461A | ナツト,ヘクサゴン | Front axle (1997-08-01 ~ ; VG20E) |
| 40038-V5000 | Bolt-Stopper | Front axle (1997-08-01 ~ ; VG20E) |
| 40052-V5001 | Arm-Knuckle, Rh | Front axle (1997-08-01 ~ ; VG20E) |
| 40053-V5001 | Arm-Knuckle, Lh | Front axle (1997-08-01 ~ ; VG20E) |
| 40207-V7052 | Hub Assy-Road Wheel, Front | Front axle (1997-08-01 ~ ; VG20E) |
| 40215-VL30A | Bearing Assy-Front Wheel | Front axle (1997-08-01 ~ ; VG20E) |
