Search › Model › WY30
WY30

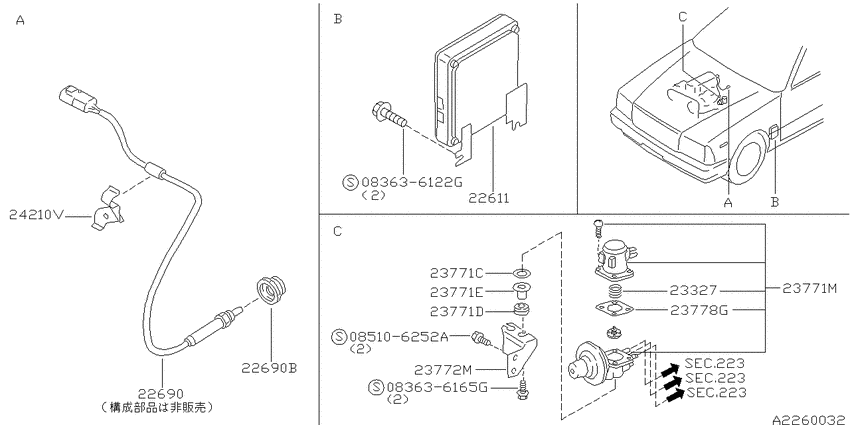

Engine control module (1997-08-01 ~ ; VG20E) 10
| # | OEM | Part name |
|---|---|---|
| 22611 | 23710-VR910 | Engine Control Module |
| 22690 | 22690-12P01 | Heated Oxygen Sensor |
| 23327 | 23327-33M14 | Spring-Vcm Valve |
| 23771 | 17091-28531 | Washer-Plain |
| 23771 | 23773-V0800 | Grommet |
| 23771 | 23774-V5000 | Collar-Vcm Valve Bracket |
| 23771 | 23771-V5002 | Valve Assy-Vcm |
| 23772 | 23772-V5000 | Bracket-Vcm |
| 24210 | 24210-V5200 | Clamp-O2 Sensor Harness |
| 85106252 | 08510-6252A | スクリユ-,タツピング |
| OEM | Part name | Category |
|---|---|---|
| 08510-6252A | スクリユ-,タツピング | Engine control module (1997-08-01 ~ ; VG20E) |
| 17091-28531 | Washer-Plain | Engine control module (1997-08-01 ~ ; VG20E) |
| 22690-12P01 | Heated Oxygen Sensor | Engine control module (1997-08-01 ~ ; VG20E) |
| 23327-33M14 | Spring-Vcm Valve | Engine control module (1997-08-01 ~ ; VG20E) |
| 23710-VR910 | Engine Control Module | Engine control module (1997-08-01 ~ ; VG20E) |
| 23771-V5002 | Valve Assy-Vcm | Engine control module (1997-08-01 ~ ; VG20E) |
| 23772-V5000 | Bracket-Vcm | Engine control module (1997-08-01 ~ ; VG20E) |
| 23773-V0800 | Grommet | Engine control module (1997-08-01 ~ ; VG20E) |
| 23774-V5000 | Collar-Vcm Valve Bracket | Engine control module (1997-08-01 ~ ; VG20E) |
| 24210-V5200 | Clamp-O2 Sensor Harness | Engine control module (1997-08-01 ~ ; VG20E) |
