Search › Model › WY30
WY30

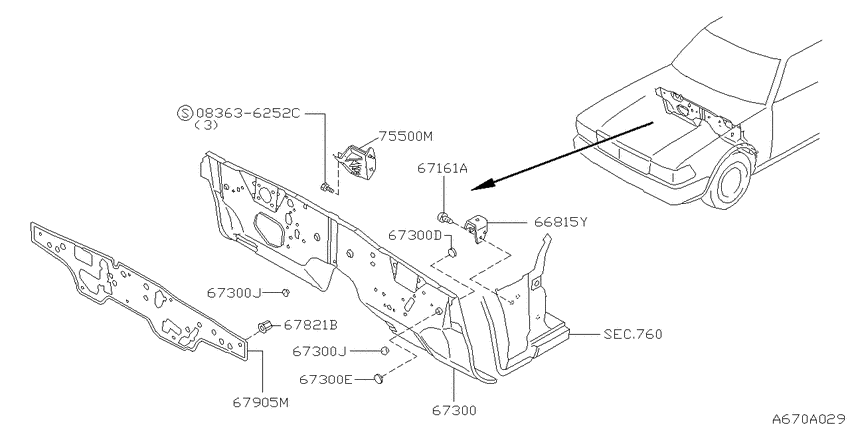

Dash panel & fitting (1997-08-01 ~ ; W +V) 8
| # | OEM | Part name |
|---|---|---|
| 66815 | 67852-V5001 | Bracket-Egi Computer |
| 67161 | 01461-00061 | SCREW |
| 67300 | 67300-V5002 | Dash-Lower |
| 67300 | 76916-00100 | Plug-Rear Floor |
| 67821 | 01217-00051 | NUT |
| 67905 | 67356-V7000 | Insulator-Steering, Lower |
| 75500 | 67840-V7000 | フツトレスト アツセンブリ- |
| 83636252 | 08363-6252C | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 01217-00051 | NUT | Dash panel & fitting (1997-08-01 ~ ; W +V) |
| 01461-00061 | SCREW | Dash panel & fitting (1997-08-01 ~ ; W +V) |
| 08363-6252C | スクリユ-,マシン | Dash panel & fitting (1997-08-01 ~ ; W +V) |
| 67300-V5002 | Dash-Lower | Dash panel & fitting (1997-08-01 ~ ; W +V) |
| 67356-V7000 | Insulator-Steering, Lower | Dash panel & fitting (1997-08-01 ~ ; W +V) |
| 67840-V7000 | フツトレスト アツセンブリ- | Dash panel & fitting (1997-08-01 ~ ; W +V) |
| 67852-V5001 | Bracket-Egi Computer | Dash panel & fitting (1997-08-01 ~ ; W +V) |
| 76916-00100 | Plug-Rear Floor | Dash panel & fitting (1997-08-01 ~ ; W +V) |
