WY30

Nissan CEDRIC-GLORIA · 1997 · 2,657 parts · 186 categories

2,657 items

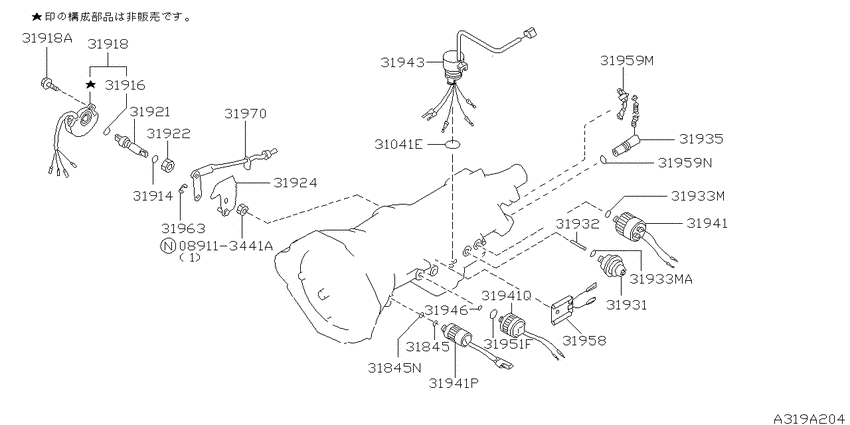

Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA) 25

#	OEM	Part name
31041	31526-X8000	Seal-Ring, Oil Pressure Switch
31845	31947-X8600	Seal-O Ring, Overdrive Release Solenoid
31845	31949-X8581	Seal-Rubber, Lock Up Solenoid
31914	31914-X0100	Seal-O Ring
31916	31916-X0100	Seal-O Ring
31918	31918-X2820	Switch Assy-Pnp(Inhibitor)
31918	01121-00381	BOLT
31921	31921-X0101	Shaft Assy-Manual
31924	31924-X0102	Plate Assy-Manual
31931	31931-X0110	Diaphragm Assy-Vacuum
31932	31932-X0100	Rod-Diaphragm
31932	31932-X0101	Rod-Diaphragm
31932	31932-X0102	Rod-Diaphragm
31932	31932-X0103	Rod-Diaphragm
31932	31932-X0104	Rod-Diaphragm
31935	31935-X8500	Sensor Assy-Revolution
31941	31941-X0106	Solenoid Assy-Down Shift
31941	31941-X8581	Torque Converter Clutch Solenoid Valve
31943	31943-X8581	Terminal Assy
31946	31946-X8600	Seal-O Ring, Overdrive Release Solenoid
31958	31958-X8582	Sensor-Temperature Oil
31959	31888-X8581	Bracket-Revolution Sensor
31963	31963-X0100	Ring-Snap
31970	31970-X0106	Rod Assy-Parking
89113441	08911-3441A	ナツト,ヘクサゴン

OEM	Part name	Category
01121-00381	BOLT	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
08911-3441A	ナツト,ヘクサゴン	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31526-X8000	Seal-Ring, Oil Pressure Switch	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31888-X8581	Bracket-Revolution Sensor	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31914-X0100	Seal-O Ring	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31916-X0100	Seal-O Ring	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31918-X2820	Switch Assy-Pnp(Inhibitor)	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31921-X0101	Shaft Assy-Manual	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31924-X0102	Plate Assy-Manual	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31931-X0110	Diaphragm Assy-Vacuum	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31932-X0100	Rod-Diaphragm	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31932-X0101	Rod-Diaphragm	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31932-X0102	Rod-Diaphragm	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31932-X0103	Rod-Diaphragm	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31932-X0104	Rod-Diaphragm	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31935-X8500	Sensor Assy-Revolution	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31941-X0106	Solenoid Assy-Down Shift	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31941-X8581	Torque Converter Clutch Solenoid Valve	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31943-X8581	Terminal Assy	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31946-X8600	Seal-O Ring, Overdrive Release Solenoid	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31947-X8600	Seal-O Ring, Overdrive Release Solenoid	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31949-X8581	Seal-Rubber, Lock Up Solenoid	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31958-X8582	Sensor-Temperature Oil	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31963-X0100	Ring-Snap	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
31970-X0106	Rod Assy-Parking	Control switch & system (1997-08-01 ~ ; AT.RA +AT.FA)
