Search › Model › WY30
WY30

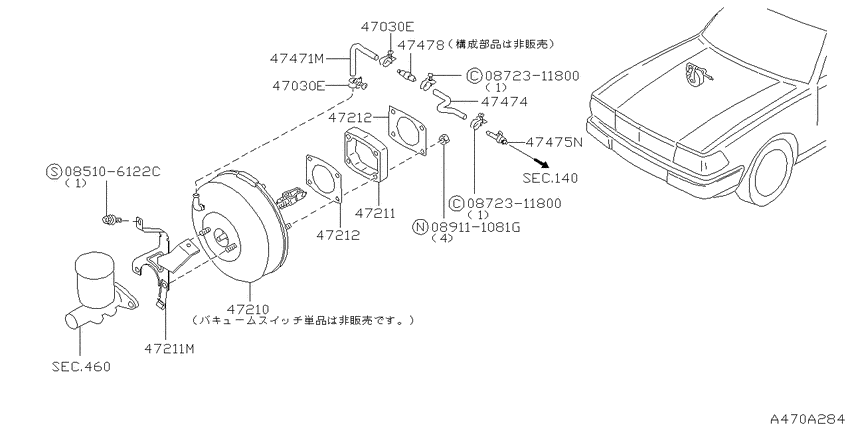

Brake servo & servo control (1997-08-01 ~ ; VG20E) 10
| # | OEM | Part name |
|---|---|---|
| 47030 | 16439-17B00 | Clip |
| 47210 | 47210-V5001 | Booster Assy-Brake |
| 47210 | 47210-V5011 | Booster Assy-Brake |
| 47211 | 47211-V5000 | Spacer-Booster |
| 47211 | 47473-01E00 | Bracket |
| 47474 | 47474-V5011 | Hose-Booster |
| 47475 | 47475-F2000 | Connector-Booster Hose |
| 47478 | 47478-51E00 | VALVE ASSY-CHECK |
| 85106122 | 08510-6122C | スクリユ-,タツピング |
| 872311800 | 08723-11800 | CLAMP-HOSE |
| OEM | Part name | Category |
|---|---|---|
| 08510-6122C | スクリユ-,タツピング | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 08723-11800 | CLAMP-HOSE | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 16439-17B00 | Clip | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 47210-V5001 | Booster Assy-Brake | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 47210-V5011 | Booster Assy-Brake | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 47211-V5000 | Spacer-Booster | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 47473-01E00 | Bracket | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 47474-V5011 | Hose-Booster | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 47475-F2000 | Connector-Booster Hose | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
| 47478-51E00 | VALVE ASSY-CHECK | Brake servo & servo control (1997-08-01 ~ ; VG20E) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 8
- Category
- 186
- Collected
- 2026-07-26
