| 16716-28010 |
Cushion, Fan Shroud |

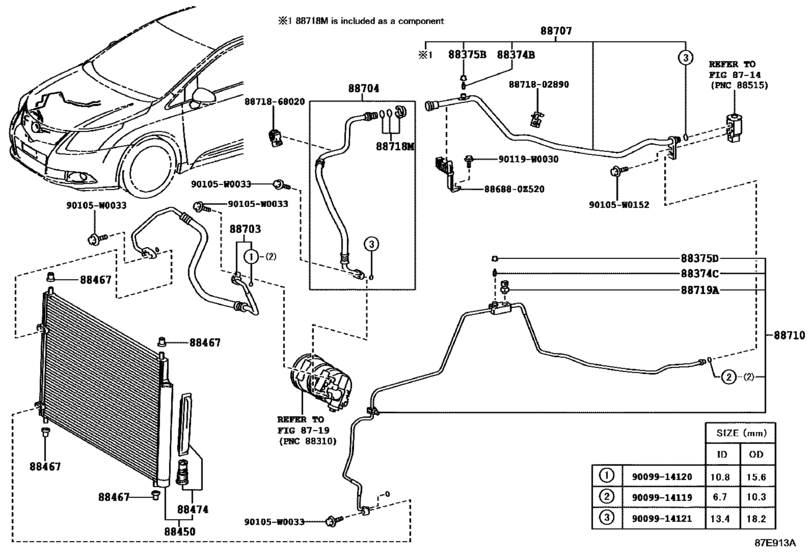

Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88374-30010 |
Valve, Service, No.1 |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88375-30280 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88375-30290 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88375-30310 |
Cap, Service Valve, No.1 |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88375-30320 |
Cap, Service Valve, No.1 |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88450-02280 |
Condenser Assy, W/receiver |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88450-0F170 |
Condenser Assy, W/receiver |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88474-17010 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88688-0Z520 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88703-05380 |
Hose Sub-Assy, Discharge |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88703-05410 |
Hose Sub-Assy, Discharge |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88704-0F090 |
Hose Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88704-0F100 |
Hose Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88707-02190 |
Pipe Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88707-02200 |
Pipe Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88710-05500 |
Tube Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88710-05530 |
Tube Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88718-02890 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88718-52260 |
Clamp, Piping |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88718-68020 |
Clamp, Piping |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 88719-33020 |
Sensor, Airconditioner Pressure |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 90105-W0033 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 90105-W0152 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
| 90119-W0030 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([05.2015 - ] (1505- )WWT27#) |
