WWT271

Toyota AVENSIS · 2015 · 3,264 parts · 179 categories

3,264 items

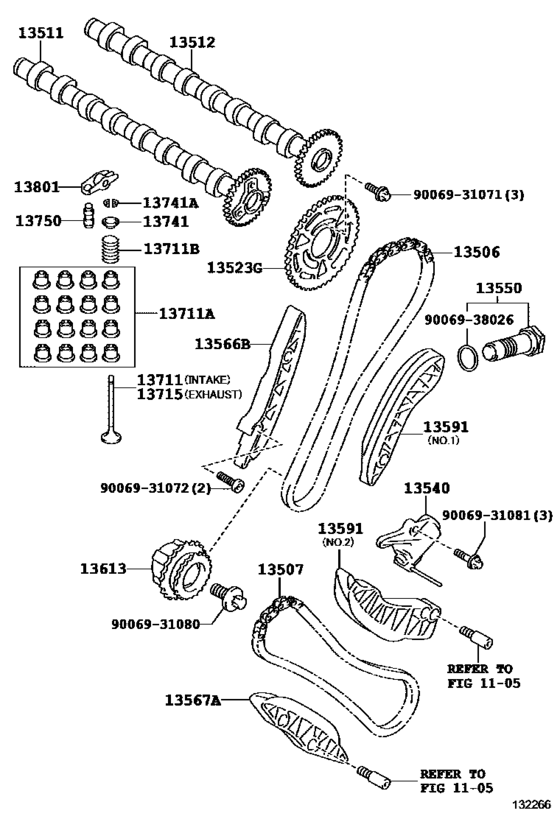

Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW) 29

#	OEM	Part name
13506	13506-WA010	Chain Sub-Assy
13506	13506-WA011	Chain Sub-Assy
13507	13507-WA010	Chain Sub-Assy, No.2
13507	13507-WA011	Chain Sub-Assy, No.2
13511	13501-WA010	Camshaft
13512	13502-WA010	Camshaft, No.2
13523	13523-WA010	Sprocket, Camshaft Timing
13523	13523-WA011	Sprocket, Camshaft Timing
13540	13540-WA010	Tensioner Assy, Chain, No.1
13550	13544-WA010	Tensioner Assy, Chain, No.2
13550	13544-WA011	Tensioner Assy, Chain, No.2
13566	13566-WA030	Guide, Timing Chain
13567	13566-WA021	Guide, Timing Chain, No.2
13591	13591-WA010	Arm, Timing Chain Tension
13591	13591-WA021	Arm, Timing Chain Tension
13613	13613-WA010	Gear, Injection Pump Drive
13711	13711-WA020	Valve, Intake
13711	13734-WA010	Seal Or Ring, O(For Valve Stem Oil)
13711	90069-51022	Spring, Compression(For Inner)
13715	13715-WA020	Valve, Exhaust
13741	13741-WA010	Retainer, Valve Spring
13750	13750-WA011	Adjuster Assy, Valve Lash
13750	13750-WA012	Adjuster Assy, Valve Lash
13801	13801-WA011	Arm Sub-Assy, Valve Rocker, No.1
9006931071	90069-31071	New Genuine Part
9006931072	90069-31072	New Genuine Part
9006931080	90069-31080	New Genuine Part
9006931081	90069-31081	New Genuine Part
9006938026	90069-38026	New Genuine Part

OEM	Part name	Category
13501-WA010	Camshaft	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13502-WA010	Camshaft, No.2	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13506-WA010	Chain Sub-Assy	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13506-WA011	Chain Sub-Assy	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13507-WA010	Chain Sub-Assy, No.2	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13507-WA011	Chain Sub-Assy, No.2	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13523-WA010	Sprocket, Camshaft Timing	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13523-WA011	Sprocket, Camshaft Timing	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13540-WA010	Tensioner Assy, Chain, No.1	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13544-WA010	Tensioner Assy, Chain, No.2	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13544-WA011	Tensioner Assy, Chain, No.2	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13566-WA021	Guide, Timing Chain, No.2	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13566-WA030	Guide, Timing Chain	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13591-WA010	Arm, Timing Chain Tension	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13591-WA021	Arm, Timing Chain Tension	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13613-WA010	Gear, Injection Pump Drive	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13711-WA020	Valve, Intake	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13715-WA020	Valve, Exhaust	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13734-WA010	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13741-WA010	Retainer, Valve Spring	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13750-WA011	Adjuster Assy, Valve Lash	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13750-WA012	Adjuster Assy, Valve Lash	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
13801-WA011	Arm Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
90069-31071	New Genuine Part	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
90069-31072	New Genuine Part	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
90069-31080	New Genuine Part	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
90069-31081	New Genuine Part	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
90069-38026	New Genuine Part	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
90069-51022	Spring, Compression(For Inner)	Camshaft & Valve ([05.2015 - ] (1505- )1WW,2WW)
