WWT271

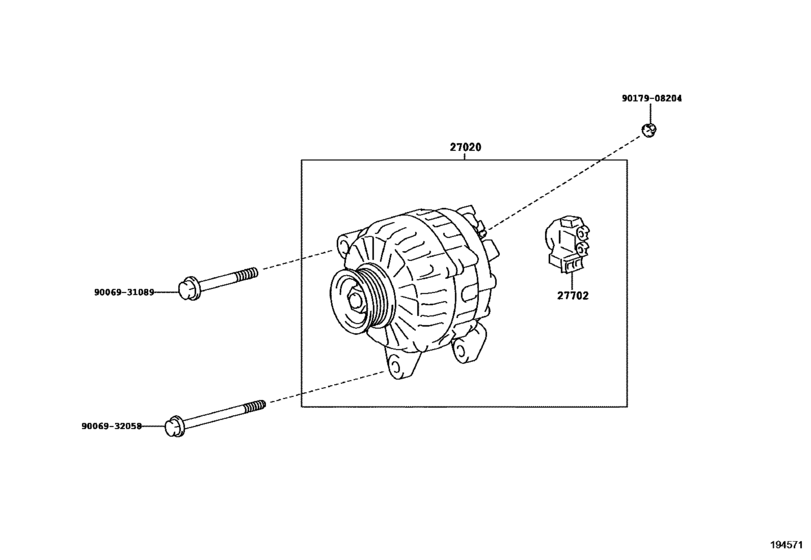

Alternator ([05.2015 - ] 12V 150A (1505- )1WW,2WW) 6
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-YV040 | Alternator Assy |
| 27702 | 27702-WA010 | Regulator Sub-Assy Generator W/brush |
| 9006931089 | 90069-31089 | New Genuine Part |
| 9006932058 | 90069-32058 | 9006932058 |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 27060-YV040 | Alternator Assy | Alternator ([05.2015 - ] 12V 150A (1505- )1WW,2WW) |
| 27702-WA010 | Regulator Sub-Assy Generator W/brush | Alternator ([05.2015 - ] 12V 150A (1505- )1WW,2WW) |
| 90069-31089 | New Genuine Part | Alternator ([05.2015 - ] 12V 150A (1505- )1WW,2WW) |
| 90069-32058 | 9006932058 | Alternator ([05.2015 - ] 12V 150A (1505- )1WW,2WW) |
| 90080-18070 | NUT, WWASHER | Alternator ([05.2015 - ] 12V 150A (1505- )1WW,2WW) |
| 90179-08204 | Nut | Alternator ([05.2015 - ] 12V 150A (1505- )1WW,2WW) |
