Search › Model › WWA42
WWA42

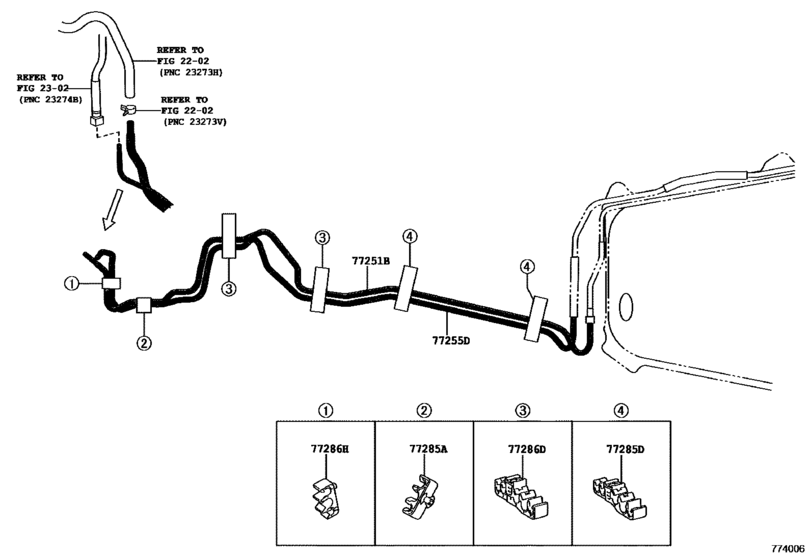

Fuel Tank & Tube ([10.2015 - ] FUEL TUBE (1510- )WWA42) 6
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-42240 | Tube, Fuel Main |
| 77255 | 77255-42170 | Tube, Fuel Return |
| 77285 | 77286-42140 | Support, Fuel Return And Main Tube |
| 77285 | 77298-42040 | Clamp, Fuel Tube, No.1 |
| 77286 | 77298-42050 | Clamp, Fuel Tube, No.2 |
| 77286 | 77286-42130 | Support, Fuel Return And Main Tube |
| OEM | Part name | Category |
|---|---|---|
| 77251-42240 | Tube, Fuel Main | Fuel Tank & Tube ([10.2015 - ] FUEL TUBE (1510- )WWA42) |
| 77255-42170 | Tube, Fuel Return | Fuel Tank & Tube ([10.2015 - ] FUEL TUBE (1510- )WWA42) |
| 77286-42130 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([10.2015 - ] FUEL TUBE (1510- )WWA42) |
| 77286-42140 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([10.2015 - ] FUEL TUBE (1510- )WWA42) |
| 77298-42040 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([10.2015 - ] FUEL TUBE (1510- )WWA42) |
| 77298-42050 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([10.2015 - ] FUEL TUBE (1510- )WWA42) |
