Search › Model › WWA42
WWA42

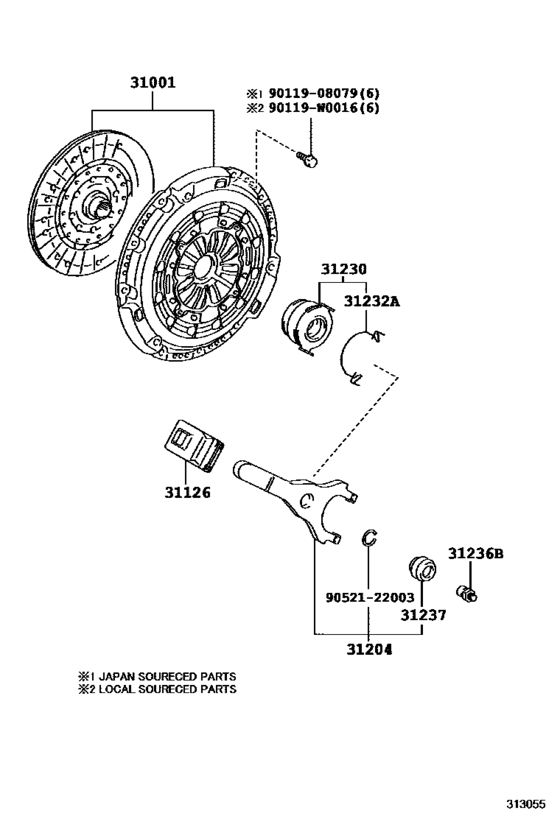

Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) 10
| # | OEM | Part name |
|---|---|---|
| 31001 | 31001-0R010 | Clutch Set, Cover & Disc |
| 31126 | 31126-64020 | Boot, Clutch Release Fork |
| 31204 | 31204-64030 | Fork Sub-Assy, Clutch Release |
| 31230 | 31230-20200 | Bearing Assy, Clutch Release |
| 31232 | 31232-20031 | Clip, Release Bearing Hub |
| 31236 | 31236-64010 | Support, Release Fork |
| 31237 | 31237-60010 | Boot, Clutch Release Fork Support |
| 90119 | 90119-W0016 | Bolt (For Transmission Control Cable Bracket) |
| 90119 | 90119-08079 | Bolt(For Transmission Input Damper Cover & Flywheel) |
| 9052122003 | 90521-22003 | Ring, Snap(For Clutch Release Hub) |
| OEM | Part name | Category |
|---|---|---|
| 31001-0R010 | Clutch Set, Cover & Disc | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 31126-64020 | Boot, Clutch Release Fork | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 31204-64030 | Fork Sub-Assy, Clutch Release | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 31230-20200 | Bearing Assy, Clutch Release | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 31232-20031 | Clip, Release Bearing Hub | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 31236-64010 | Support, Release Fork | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 31237-60010 | Boot, Clutch Release Fork Support | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 90119-08079 | Bolt(For Transmission Input Damper Cover & Flywheel) | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 90119-W0016 | Bolt (For Transmission Control Cable Bracket) | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
| 90521-22003 | Ring, Snap(For Clutch Release Hub) | Clutch & Release Fork ([10.2015 - ] (1510- )WWA42) |
