Search › Model › WWA42

WWA42

Toyota RAV4-VANGUARD · 2015 · 3,270 parts · 194 categories

3,270 items

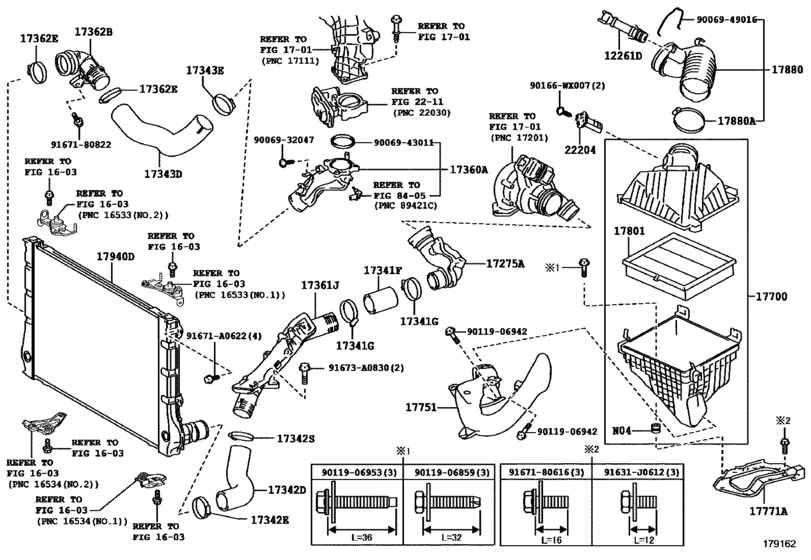

Air Cleaner ([10.2015 - ] (1510- )2WW) 30

#	OEM	Part name
12261	12262-YV010	Hose, Ventilation
17275	17275-0X011	Elbow, Compressor Outlet
17341	17341-53010	Hose, Air, No.1
17341	90460-70003	Clamp Or Clip(For Air Hose, No.1)
17342	17342-53010	Hose, Air, No.2
17342	90460-73011	Clamp Or Clip(For Air Hose, No.1)
17343	17343-53010	Hose, Air, No.3
17360	17360-YV010	Tube Assy, Air
17361	17361-53010	Tube, Air, No.1
17362	17362-53010	Tube, Air, No.2
17700	17700-YV020	Cleaner Assy, Air
17751	17751-53010	Inlet, Air Cleaner, No.1
17771	17771-26020	Bracket, Air Cleaner
17801	17801-YV020	Element Sub-Assy, Air Cleaner Filter
17880	17880-YV010	Hose Assy, Air Cleaner
17880	90069-48020	Clamp, Hose
17940	17940-53010	Intercooler Assy
22204	22204-YV010	Meter Sub-Assy, Intake Air Flow
90166	90166-WX007	New Genuine Part
91631	91631-J0612	BRACKET
91671	91671-A0622	New Genuine Part
91673	91673-A0830	New Genuine Part
9006932047	90069-32047	New Genuine Part
9006943011	90069-43011	New Genuine Part
9006949016	90069-49016	New Genuine Part
9011906859	90119-06859	BOLT WWASHER
9011906942	90119-06942	BOLT WWASHER
9011906953	90119-06953	BOLT WWASHER
9167180616	91671-80616	BOLT FLANGE
9167180822	91671-80822	New Genuine Part

OEM	Part name	Category
12262-YV010	Hose, Ventilation	Air Cleaner ([10.2015 - ] (1510- )2WW)
17275-0X011	Elbow, Compressor Outlet	Air Cleaner ([10.2015 - ] (1510- )2WW)
17341-53010	Hose, Air, No.1	Air Cleaner ([10.2015 - ] (1510- )2WW)
17342-53010	Hose, Air, No.2	Air Cleaner ([10.2015 - ] (1510- )2WW)
17343-53010	Hose, Air, No.3	Air Cleaner ([10.2015 - ] (1510- )2WW)
17360-YV010	Tube Assy, Air	Air Cleaner ([10.2015 - ] (1510- )2WW)
17361-53010	Tube, Air, No.1	Air Cleaner ([10.2015 - ] (1510- )2WW)
17362-53010	Tube, Air, No.2	Air Cleaner ([10.2015 - ] (1510- )2WW)
17700-YV020	Cleaner Assy, Air	Air Cleaner ([10.2015 - ] (1510- )2WW)
17751-53010	Inlet, Air Cleaner, No.1	Air Cleaner ([10.2015 - ] (1510- )2WW)
17771-26020	Bracket, Air Cleaner	Air Cleaner ([10.2015 - ] (1510- )2WW)
17801-YV020	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([10.2015 - ] (1510- )2WW)
17880-YV010	Hose Assy, Air Cleaner	Air Cleaner ([10.2015 - ] (1510- )2WW)
17940-53010	Intercooler Assy	Air Cleaner ([10.2015 - ] (1510- )2WW)
22204-YV010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([10.2015 - ] (1510- )2WW)
90069-32047	New Genuine Part	Air Cleaner ([10.2015 - ] (1510- )2WW)
90069-43011	New Genuine Part	Air Cleaner ([10.2015 - ] (1510- )2WW)
90069-48020	Clamp, Hose	Air Cleaner ([10.2015 - ] (1510- )2WW)
90069-49016	New Genuine Part	Air Cleaner ([10.2015 - ] (1510- )2WW)
90119-06859	BOLT WWASHER	Air Cleaner ([10.2015 - ] (1510- )2WW)
90119-06942	BOLT WWASHER	Air Cleaner ([10.2015 - ] (1510- )2WW)
90119-06953	BOLT WWASHER	Air Cleaner ([10.2015 - ] (1510- )2WW)
90166-WX007	New Genuine Part	Air Cleaner ([10.2015 - ] (1510- )2WW)
90460-70003	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.2015 - ] (1510- )2WW)
90460-73011	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.2015 - ] (1510- )2WW)
91631-J0612	BRACKET	Air Cleaner ([10.2015 - ] (1510- )2WW)
91671-80616	BOLT FLANGE	Air Cleaner ([10.2015 - ] (1510- )2WW)
91671-80822	New Genuine Part	Air Cleaner ([10.2015 - ] (1510- )2WW)
91671-A0622	New Genuine Part	Air Cleaner ([10.2015 - ] (1510- )2WW)
91673-A0830	New Genuine Part	Air Cleaner ([10.2015 - ] (1510- )2WW)
