WU720

Toyota DYNA-TOYOACE · 2011 · 3,084 parts · 213 categories

← Back to categories

3,084 items

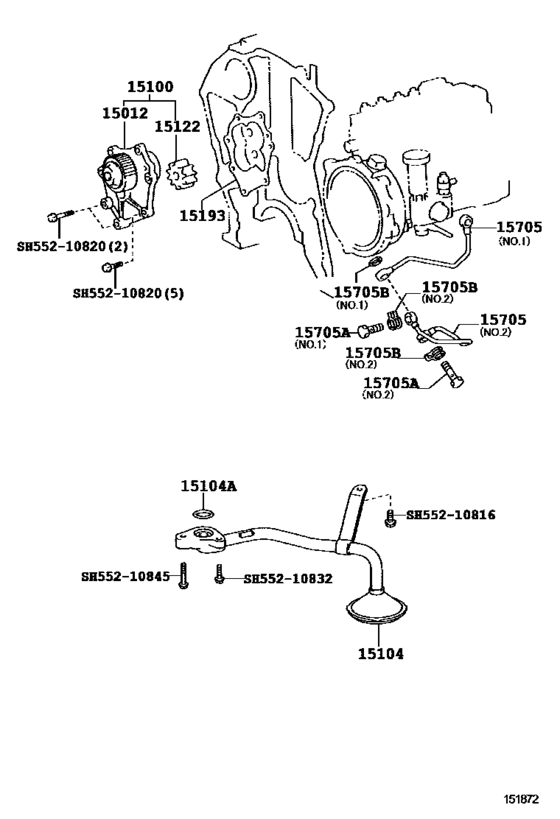

Engine Oil Pump ([07.2011 - ] (1107- )W04D..WU710,720..LHD..75T,85T) 7

#	OEM	Part name
15012	15012-E0120	Cover Sub-Assy, Oil Pump
15012	15012-E0121	Cover Sub-Assy, Oil Pump
15100	15110-E0320	Pump Assy, Oil
15100	15110-E0321	Pump Assy, Oil
15104	15104-E0120	Strainer Sub-Assy, Oil
15122	15122-E0110	Gear, Oil Pump Driven
15705	29601-E0040	Pipe Sub-Assy, Oil, Injection Pump Inlet

OEM	Part name	Category
15012-E0120	Cover Sub-Assy, Oil Pump	Engine Oil Pump ([07.2011 - ] (1107- )W04D..WU710,720..LHD..75T,85T)
15012-E0121	Cover Sub-Assy, Oil Pump	Engine Oil Pump ([07.2011 - ] (1107- )W04D..WU710,720..LHD..75T,85T)
15104-E0120	Strainer Sub-Assy, Oil	Engine Oil Pump ([07.2011 - ] (1107- )W04D..WU710,720..LHD..75T,85T)
15110-E0320	Pump Assy, Oil	Engine Oil Pump ([07.2011 - ] (1107- )W04D..WU710,720..LHD..75T,85T)
15110-E0321	Pump Assy, Oil	Engine Oil Pump ([07.2011 - ] (1107- )W04D..WU710,720..LHD..75T,85T)
15122-E0110	Gear, Oil Pump Driven	Engine Oil Pump ([07.2011 - ] (1107- )W04D..WU710,720..LHD..75T,85T)
29601-E0040	Pipe Sub-Assy, Oil, Injection Pump Inlet	Engine Oil Pump ([07.2011 - ] (1107- )W04D..WU710,720..LHD..75T,85T)
