WU710

Toyota DYNA-TOYOACE · 2011 · 2,799 parts · 197 categories

2,799 items

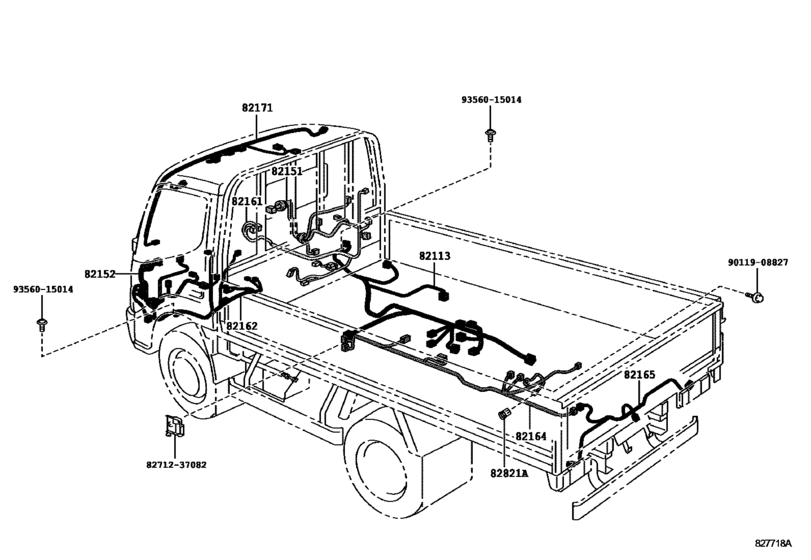

Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD) 21

#	OEM	Part name
82113	82113-37G60	Wire, Engine Room, No.3
82151	82151-37D20	Wire, Front Door, Rh
82151	82151-37D70	Wire, Front Door, Rh
82151	82151-37D72	Wire, Front Door, Rh
82151	82151-37D71	Wire, Front Door, Rh
82151	82151-37E20	Wire, Front Door, Rh
82151	82151-37E22	Wire, Front Door, Rh
82151	82151-37E21	Wire, Front Door, Rh
82152	82152-37C20	Wire, Front Door, Lh
82152	82152-37C70	Wire, Front Door, Lh
82152	82152-37D20	Wire, Front Door, Lh
82161	82161-37D00	Wire, Floor
82162	82162-37680	Wire, Floor, No.2
82164	82164-37W40	Wire, Frame
82164	82164-37W41	Wire, Frame
82165	82165-37730	Wire, Frame, No.2
82171	82171-37B60	Wire, Roof, No.1
82171	82171-37B80	Wire, Roof, No.1
8271237082	82712-37082	Protector, Wiring Harness, No.2
9011908827	90119-08827	New Genuine Part
9356015014	93560-15014	SCREW

OEM	Part name	Category
82113-37G60	Wire, Engine Room, No.3	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82151-37D20	Wire, Front Door, Rh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82151-37D70	Wire, Front Door, Rh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82151-37D71	Wire, Front Door, Rh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82151-37D72	Wire, Front Door, Rh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82151-37E20	Wire, Front Door, Rh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82151-37E21	Wire, Front Door, Rh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82151-37E22	Wire, Front Door, Rh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82152-37C20	Wire, Front Door, Lh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82152-37C70	Wire, Front Door, Lh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82152-37D20	Wire, Front Door, Lh	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82161-37D00	Wire, Floor	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82162-37680	Wire, Floor, No.2	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82164-37W40	Wire, Frame	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82164-37W41	Wire, Frame	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82165-37730	Wire, Frame, No.2	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82171-37B60	Wire, Roof, No.1	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82171-37B80	Wire, Roof, No.1	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
82712-37082	Protector, Wiring Harness, No.2	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
90119-08827	New Genuine Part	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
93560-15014	SCREW	Wiring & Clamp ([07.2011 - ] DOOR,FLOOR,FRAME & ROOF (1107- )RHD)
