Search › Model › WU710

WU710

Toyota DYNA-TOYOACE · 2011 · 2,799 parts · 197 categories

2,799 items

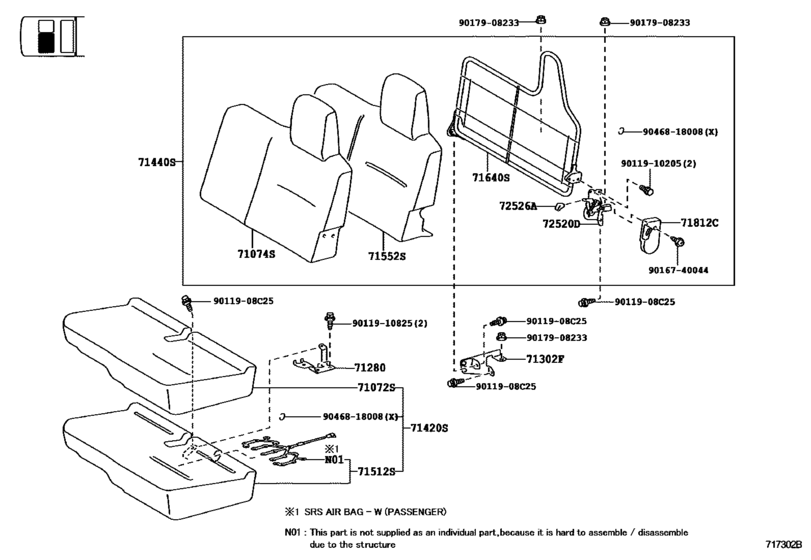

Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD) 37

#	OEM	Part name
71072	71072-37C80-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-37C81-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-37C90-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-37C91-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71074-37B60-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-37B70-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-37C80-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-37C90-B0	Cover, Front Seat Back, Lh(For Separate Type)
71280	71280-37010	Bracket Assy, Seat, Inner Lh
71302	71302-37050	Hinge Sub-Assy, Front Lh Seat Back, Lh
71420	71420-37K10-B0	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-37K12-B0	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-37K11-B0	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-37K30-B0	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-37K32-B0	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-37K31-B0	Cushion Assy, Front Seat, Lh (For Separate Type)
71440	71440-37C30-B0	Back Assy, Front Seat, Lh(For Separate Type)
71440	71440-37C40-B0	Back Assy, Front Seat, Lh(For Separate Type)
71440	71440-37D70-B0	Back Assy, Front Seat, Lh(For Separate Type)
71440	71440-37D80-B0	Back Assy, Front Seat, Lh(For Separate Type)
71512	71502-37320	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-37322	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-37321	Pad, Front Seat Cushion, Lh (For Separate Type)
71552	71552-37200	Pad, Front Seat Back, Lh(For Separate Type)
71552	71552-37240	Pad, Front Seat Back, Lh(For Separate Type)
71640	71014-37040	Spring Assy, Front Seat Back, Lh(For Separate Type)
71640	71014-37120	Spring Assy, Front Seat Back, Lh(For Separate Type)
71812	71812-37040-B0	Cover, Reclining Adjuster, Lh
72520	72520-37070-B0	Adjuster Assy, Reclining Seat, Outer Lh
72526	72526-37040-B0	Handle, Reclining Adjuster Release, Lh
9011908	90119-08C25	BOLT WWASHER
9011910205	90119-10205	Bolt
9011910825	90119-10825	Bolt
9016740044	90167-40044	BOLT
9017908233	90179-08233	NUT
9046818008	90468-18008	Clip (For Rear Seat Back)
9046818008	90468-16019	Clip (For Rear Seat Back)

OEM	Part name	Category
71014-37040	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71014-37120	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71072-37C80-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71072-37C81-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71072-37C90-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71072-37C91-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71074-37B60-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71074-37B70-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71074-37C80-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71074-37C90-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71280-37010	Bracket Assy, Seat, Inner Lh	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71302-37050	Hinge Sub-Assy, Front Lh Seat Back, Lh	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71420-37K10-B0	Cushion Assy, Front Seat, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71420-37K11-B0	Cushion Assy, Front Seat, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71420-37K12-B0	Cushion Assy, Front Seat, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71420-37K30-B0	Cushion Assy, Front Seat, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71420-37K31-B0	Cushion Assy, Front Seat, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71420-37K32-B0	Cushion Assy, Front Seat, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71440-37C30-B0	Back Assy, Front Seat, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71440-37C40-B0	Back Assy, Front Seat, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71440-37D70-B0	Back Assy, Front Seat, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71440-37D80-B0	Back Assy, Front Seat, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71502-37320	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71502-37321	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71502-37322	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71552-37200	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71552-37240	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
71812-37040-B0	Cover, Reclining Adjuster, Lh	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
72520-37070-B0	Adjuster Assy, Reclining Seat, Outer Lh	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
72526-37040-B0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
90119-08C25	BOLT WWASHER	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
90119-10205	Bolt	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
90119-10825	Bolt	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
90167-40044	BOLT	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
90179-08233	NUT	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
90468-16019	Clip (For Rear Seat Back)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
90468-18008	Clip (For Rear Seat Back)	Seat & Seat Track ([07.2011 - ] PASSENGER SEAT (1107- )RHD)
