WU710

Toyota DYNA-TOYOACE · 2011 · 2,799 parts · 197 categories

← Back to categories

2,799 items

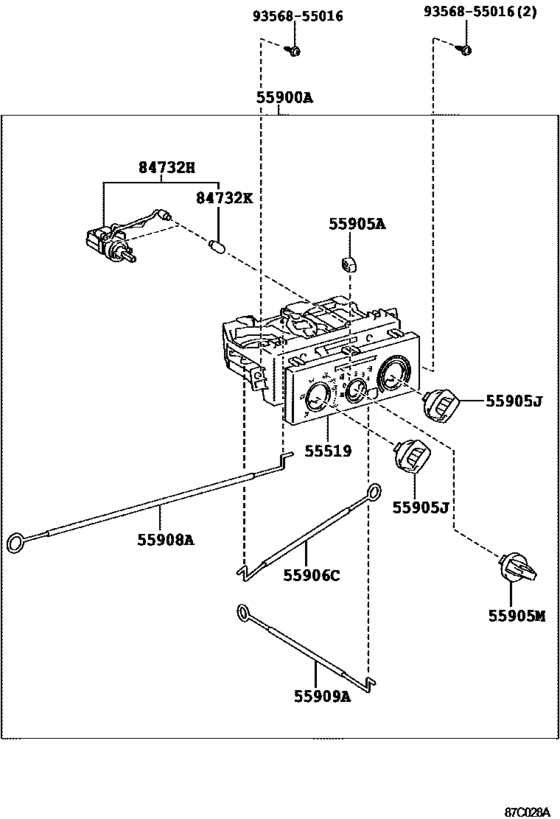

Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD) 15

#	OEM	Part name
55519	55519-37170	Plate, Heater Control Name
55519	55519-37180	Plate, Heater Control Name
55519	55519-37190	Plate, Heater Control Name
55900	55900-37380	Control & Accessory Assy, Heater
55900	55900-37490	Control & Accessory Assy, Heater
55900	55900-37500	Control & Accessory Assy, Heater
55905	55925-37010	Knob, Heater Control
55905	55905-37030	Knob, Heater Control
55905	55905-37040	Knob, Heater Control, No.2
55906	55906-37100	Cable Sub-Assy, Heater Control, No.1
55908	55908-37100	Cable Sub-Assy, Air Inlet Damper Control
55909	55909-37110	Cable Sub-Assy, Airmix Damper Control
84732	84732-37070	Switch, Heater Blower
84732	90010-11014	Bulb, Heater Blower Switch
9356855016	93568-55016	Screw

OEM	Part name	Category
55519-37170	Plate, Heater Control Name	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55519-37180	Plate, Heater Control Name	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55519-37190	Plate, Heater Control Name	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55900-37380	Control & Accessory Assy, Heater	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55900-37490	Control & Accessory Assy, Heater	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55900-37500	Control & Accessory Assy, Heater	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55905-37030	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55905-37040	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55906-37100	Cable Sub-Assy, Heater Control, No.1	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55908-37100	Cable Sub-Assy, Air Inlet Damper Control	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55909-37110	Cable Sub-Assy, Airmix Damper Control	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
55925-37010	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
84732-37070	Switch, Heater Blower	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
90010-11014	Bulb, Heater Blower Switch	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
93568-55016	Screw	Heating & Air Conditioning - Control & Air Duct ([07.2011 - ] CONTROL PANEL---HEATER (1107- )RHD)
