WU710

Toyota DYNA-TOYOACE · 2011 · 2,799 parts · 197 categories
WU710 ×

← Back to categories

2,799 items

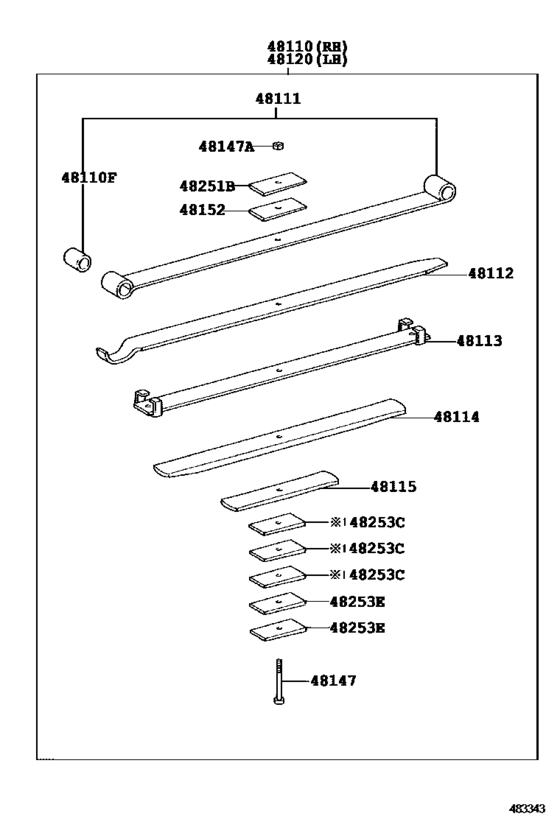

Front Spring & Shock Absorber ([07.2011 - ] 5-LEAF (1107- )65T..GEN) 37
#OEMPart name
48110 48110-3V620 Spring Assy, Front, Rh
48110 48110-3V640 Spring Assy, Front, Rh
48110 48110-3V680 Spring Assy, Front, Rh
48110 48110-3V700 Spring Assy, Front, Rh
48110 90033-84013 Bimetal Formed Bush(For Front Spring)
48111 48101-3V420 Leaf, Front Spring, No.1
48111 48101-3V430 Leaf, Front Spring, No.1
48112 48112-3V640 Leaf, Front Spring, No.2
48112 48112-3V650 Leaf, Front Spring, No.2
48113 48102-3V620 Leaf, Front Spring, No.3
48113 48102-3V630 Leaf, Front Spring, No.3
48113 48113-3V640 Leaf, Front Spring, No.3
48113 48113-3V650 Leaf, Front Spring, No.3
48114 48102-3V640 Leaf, Front Spring, No.4
48114 48102-3V650 Leaf, Front Spring, No.4
48114 48104-37T00 Leaf, Front Spring, No.4
48114 48104-37U20 Leaf, Front Spring, No.4
48114 48115-3V640 Leaf, Front Spring, No.4
48114 48115-3V650 Leaf, Front Spring, No.4
48115 48116-3V640 Leaf, Front Spring, No.5
48115 48116-3V650 Leaf, Front Spring, No.5
48120 48110-3V630 Spring Assy, Front, Rh - FRONT, LH
48120 48110-3V650 Spring Assy, Front, Rh - FRONT, LH
48120 48110-3V690 Spring Assy, Front, Rh - FRONT, LH
48120 48110-3V710 Spring Assy, Front, Rh - FRONT, LH
48147 48147-37870 Bolt, Front Spring, Center
48147 48147-3V620 Bolt, Front Spring, Center
48147 48147-3V660 Bolt, Front Spring, Center
48147 48155-3B470 Nut, Front Spring Center Bolt
48147 48284-0W060 Nut, Front Spring Center Bolt
48152 48152-37730 Spacer, Front Leaf Spring, No.1
48152 48152-37P20 Seat, Front Spring
48251 48116-37730 Spacer, Front Leaf Spring, No.2
48251 48152-0W110 Spacer(For Front Spring)
48253 48116-37780 Spacer(For Front Spring)
48253 48116-3V620 Spacer, Front Leaf Spring, No.2
48253 48117-37730 Spacer, Front Spring, No.3
