WU710

Toyota DYNA-TOYOACE · 2011 · 2,799 parts · 197 categories
WU710 ×

← Back to categories

2,799 items

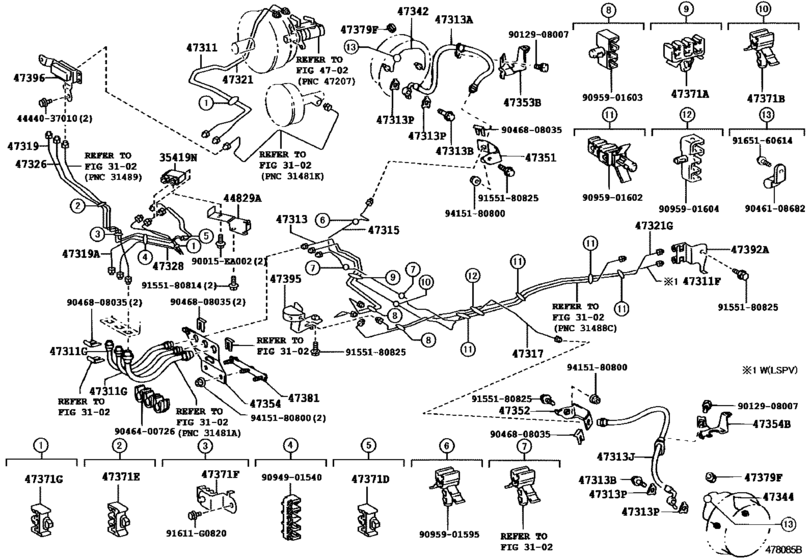

Brake Tube & Clamp ([07.2011 - 09.2015] DRUM BRAKE-W/O(ABS) (1107-1509)RHD) 65
#OEMPart name
35419 35419-37010 Valve, Check
44829 44829-37020 Bracket, Check Valve
47311 47311-37630 Tube, Front Brake, Frame No.1
47311 47311-37631 Tube, Front Brake, Frame No.1
47311 47311-37632 Tube, Front Brake, Frame No.1
47311 47311-37700 Tube, Front Brake, Frame No.1
47311 90947-02G02 Hose, Flexible(For Brake Tube)
47313 47313-37670 Tube, Front Brake, No.3
47313 90947-02A77 Hose, Flexible, No.1(For Front)
47313 90947-02H85 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90947-02B28 Hose, Flexible, No.1(For Front)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47315 47315-37630 Tube, Front Brake, No.5
47317 47317-37550 Tube, Front Brake, No.7
47319 47312-37E40 Tube, Front Brake, No.9
47319 47312-37E41 Tube, Front Brake, No.9
47319 47313-37680 Tube, Front Brake, No.10
47319 47313-37681 Tube, Front Brake, No.10
47321 47321-37600 Tube, Rear Brake, Frame No.1
47321 47321-37601 Tube, Rear Brake, Frame No.1
47321 47321-37602 Tube, Rear Brake, Frame No.1
47321 47321-37670 Tube, Rear Brake, Frame No.1
47326 47322-37E80 Tube, Rear Brake, No.6
47326 47322-37E81 Tube, Rear Brake, No.6
47328 47323-37870 Tube, Rear Brake, No.8
47328 47323-37871 Tube, Rear Brake, No.8
47342 47342-37061 Tube, Wheel Cylinder, Front Rh No.2
47351 47351-37300 Bracket, Flexible Hose(For Front Rh)
47352 47352-37180 Bracket, Flexible Hose(For Front Lh)
47353 47353-37210 Bracket, Flexible Hose, No.3
47353 47353-37330 Bracket, Flexible Hose, No.3
47354 47354-37360 Bracket, Front Flexible Hose
47354 47354-37210 Bracket, Flexible Hose, No.4
47354 47354-37380 Bracket, Flexible Hose, No.4
47371 47371-37350 Clamp, Brake Tube, No.3
47371 47371-37050 Clamp, Brake Tube, No.6
47371 47371-37140 Clamp, Brake Tube, No.1
47371 47371-37160 Clamp, Brake Tube, No.7
47371 47371-37170 Clamp, Brake Tube, No.10
47371 47371-37110 Clamp, Brake Tube, No.1
47371 47371-37360 Clamp, Brake Tube, No.3
47379 47379-37010 Damper, Tube(For Front)
47381 47381-37281 Bracket, Brake Tube Clamp No.1
47392 47391-37410 Way, Brake Tube
47395 47391-37380 Way, Brake Tube
47395 47391-37390 Way, Brake Tube
47396 47391-37470 Way, Brake Tube, No.3
90015 90015-EA002 New Genuine Part
91611 91611-G0820 Bolt
4444037010 44440-37010 Bracket Assy, Pump
9012908007 90129-08007 New Genuine Part
9046108682 90461-08682 New Genuine Part
9046400726 90464-00726 Clamp, Brake Tube, No.4
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901540 90949-01540 Clamp, Brake Tube, No.7
9095901595 90959-01595 Clamp, Brake Tube, No.1
9095901602 90959-01602 Clamp, Brake Tube, No.6
9095901603 90959-01603 Clamp, Brake Tube, No.5
9095901604 90959-01604 Clamp, Brake Tube, No.7
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180825 91551-80825 Bolt(For Cylinder Head Set Sub)
9165160614 91651-60614 Bolt
9415180800 94151-80800 Nut (For Transmission Control Cable)
