WU40

Toyota DYNA-TOYOACE · 1983 · 3,338 parts · 151 categories
WU40 ×

← Back to categories

3,338 items

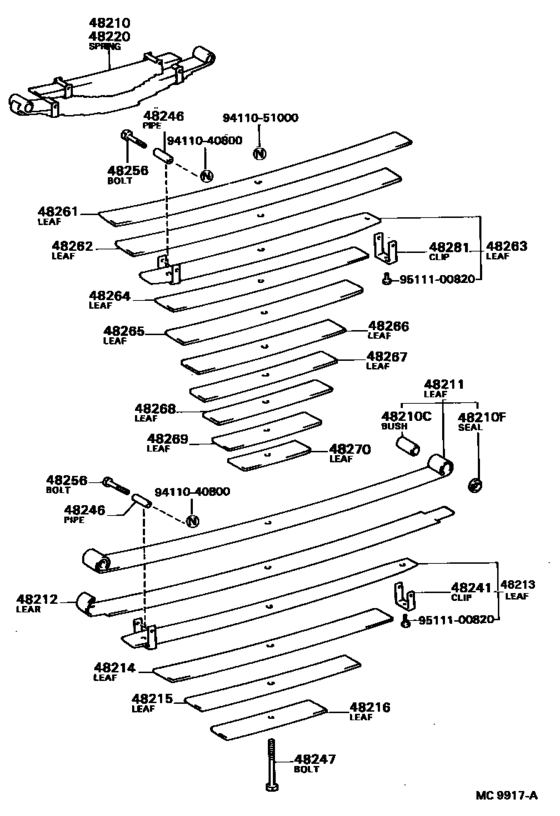

Rear Spring & Shock Absorber ([04.1983 - 08.1984] (8304-8408)WU40..RHD..IV3) 47
#OEMPart name
48210 48210-36590 Spring Assy, Rear Rh
48210 48210-36660 Spring Assy, Rear Rh
48210 48210-3B230 Spring Assy, Rear Rh
48210 90384-28120 Bush(For Rear Spring Leaf)
48210 90304-27009 Seal, Dust(For Rear Spring Pin)
48211 48201-36570 Leaf, Rear Spring, No.1
48211 48201-36660 Leaf, Rear Spring, No.1
48212 48212-36570 Leaf, Rear Spring, No.2
48212 48212-36660 Leaf, Rear Spring, No.2
48212 48212-3B320 Leaf, Rear Spring, No.2
48213 48202-36570 Leaf, Rear Spring, No.3
48213 48202-36630 Leaf, Rear Spring, No.3
48213 48202-36660 Leaf, Rear Spring, No.3
48214 48214-36570 Leaf, Rear Spring, No.4
48214 48214-3B320 Leaf, Rear Spring, No.4
48214 48214-36660 Leaf, Rear Spring, No.4
48215 48215-36570 Leaf, Rear Spring, No.5
48215 48215-36660 Leaf, Rear Spring, No.5
48216 48216-36570 Leaf, Rear Spring, No.6
48216 48216-3B320 Leaf, Rear Spring, No.6
48216 48216-36660 Leaf, Rear Spring, No.6
48241 48242-36570 Clip, Rear Spring, No.1
48246 48146-60010 Case, Front Spring Clip Bolt
48246 48146-60070 Case(For Rear Spring Clip Bolt)
48247 48247-36160 Bolt, Rear Spring, Center
48247 48247-36660 Bolt, Rear Spring, Center
48256 48256-36570 Bolt, Front Spring Clip
48261 48217-36590 Leaf, Rear Helper Spring, No.1
48261 48217-36660 Leaf, Rear Helper Spring, No.1
48262 48218-36590 Leaf, Rear Helper Spring, No.2
48263 48203-36590 Leaf, Rear Helper Spring, No.3
48263 48203-36660 Leaf, Rear Helper Spring, No.3
48264 48221-36590 Leaf, Rear Helper Spring, No.4
48264 48221-36660 Leaf, Rear Helper Spring, No.4
48265 48222-36590 Leaf, Rear Helper Spring, No.5
48265 48222-36660 Leaf, Rear Helper Spring, No.5
48266 48223-36590 Leaf, Rear Helper Spring, No.6
48266 48223-36660 Leaf, Rear Helper Spring, No.6
48267 48224-36660 Leaf, Rear Helper Spring, No.7
48268 48225-36660 Leaf, Rear Helper Spring, No.8
48269 48226-36660 Leaf, Rear Helper Spring, No.9
48270 48227-36660 Leaf, Rear Helper Spring, No.10
48281 48241-36570 Clip, Rear Helper Spring, No.1
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411051000 94110-51000 Nut(For Steering Center Arm)
9511100820 95111-00820 New Genuine Part
