WU342

Toyota DYNA-TOYOACE · 2006 · 2,998 parts · 171 categories
WU342 ×

← Back to categories

2,998 items

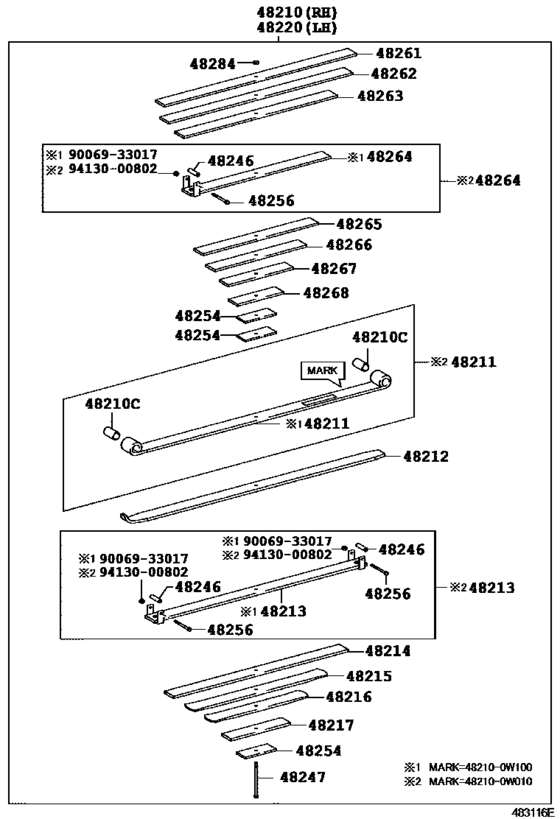

Rear Spring & Shock Absorber ([12.2009 - ] MAIN 7+HELPER 8-LEAF (0612- )75T..DCRTJ ; (0912- )85T) 45
#OEMPart name
48210 48210-0W010 Spring Assy, Rear Rh
48210 90384-28009 Bush(For Rear Spring Leaf)
48211 48201-0W010 Leaf, Rear Spring, No.1
48211 48201-0W100 Leaf, Rear Spring, No.1
48212 48212-0W010 Leaf, Rear Spring, No.2
48212 48212-0W100 Leaf, Rear Spring, No.2
48213 48202-0W010 Leaf, Rear Spring, No.3
48213 48213-0W100 Leaf, Rear Spring, No.3
48214 48214-0W010 Leaf, Rear Spring, No.4
48214 48214-0W100 Leaf, Rear Spring, No.4
48215 48215-0W010 Leaf, Rear Spring, No.5
48215 48215-0W100 Leaf, Rear Spring, No.5
48216 48216-0W010 Leaf, Rear Spring, No.6
48216 48216-0W100 Leaf, Rear Spring, No.6
48217 48217-0W010 Leaf, Rear Spring, No.7
48217 48217-0W100 Leaf, Rear Spring, No.7
48246 48146-60070 Case(For Rear Spring Clip Bolt)
48246 48246-0W180 Case, Rear Spring Clip Bolt
48247 48247-0W100 Bolt, Rear Spring, Center
48247 48247-3B040 Bolt, Rear Spring, Center
48254 48218-0W100 Spacer, Rear Spring Leaf
48254 48254-0W200 Spacer, Rear Spring, No.1
48256 48256-0W100 Bolt, Hexagon(For Rear Spring Clip Set)
48256 48256-25050 Bolt, Hexagon(For Rear Spring Clip)
48261 48218-0W010 Leaf, Rear Helper Spring, No.1
48261 48261-0W100 Leaf, Rear Helper Spring, No.1
48262 48219-0W010 Leaf, Rear Helper Spring, No.2
48262 48262-0W100 Leaf, Rear Helper Spring, No.2
48263 48221-0W010 Leaf, Rear Helper Spring, No.3
48263 48263-0W100 Leaf, Rear Helper Spring, No.3
48264 48203-0W010 Leaf, Rear Helper Spring, No.4
48264 48264-0W100 Leaf, Rear Helper Spring, No.4
48265 48223-0W010 Leaf, Rear Helper Spring, No.5
48265 48265-0W100 Leaf, Rear Helper Spring, No.5
48266 48224-0W010 Leaf, Rear Helper Spring, No.6
48266 48266-0W100 Leaf, Rear Helper Spring, No.6
48267 48225-0W010 Leaf, Rear Helper Spring, No.7
48267 48267-0W100 Leaf, Rear Helper Spring, No.7
48268 48226-0W010 Leaf, Rear Helper Spring, No.8
48268 48268-0W100 Leaf, Rear Helper Spring, No.8
48284 48284-0W100 Nut, Rear Spring Center Bolt
48284 48284-37130 Nut, Front Spring Center Bolt
9006933017 90069-33017 New Genuine Part
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
