Search › Model › WU342

WU342

Toyota DYNA-TOYOACE · 2006 · 2,998 parts · 171 categories

2,998 items

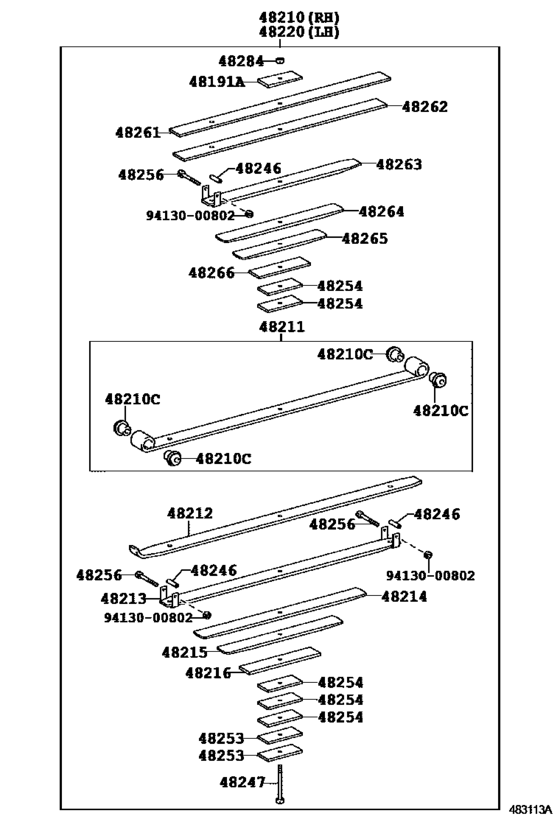

Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR) 24

#	OEM	Part name
48191	48192-37070	Wedge, Caster(For Rear Leaf Spring)
48210	48210-0W200	Spring Assy, Rear Rh
48210	90389-16028	Bimetal Formed Bush(For Front Spring)
48210	90389-T0020	Bimetal Formed Bush(For Front Spring)
48211	48201-0W200	Leaf, Rear Spring, No.1
48212	48212-0W200	Leaf, Rear Spring, No.2
48213	48202-0W200	Leaf, Rear Spring, No.3
48214	48214-0W200	Leaf, Rear Spring, No.4
48215	48215-0W200	Leaf, Rear Spring, No.5
48216	48216-0W200	Leaf, Rear Spring, No.6
48246	48146-60070	Case(For Rear Spring Clip Bolt)
48247	48247-3B040	Bolt, Rear Spring, Center
48253	48253-0W170	Spacer, Rear Spring, No.1
48254	48254-0W200	Spacer, Rear Spring, No.1
48256	48256-25050	Bolt, Hexagon(For Rear Spring Clip)
48261	48217-0W200	Leaf, Rear Helper Spring, No.1
48262	48218-0W200	Leaf, Rear Helper Spring, No.2
48263	48203-0W200	Leaf, Rear Helper Spring, No.3
48264	48221-0W200	Leaf, Rear Helper Spring, No.4
48265	48222-0W200	Leaf, Rear Helper Spring, No.5
48266	48223-0W200	Leaf, Rear Helper Spring, No.6
48284	48284-37130	Nut, Front Spring Center Bolt
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part

OEM	Part name	Category
48146-60070	Case(For Rear Spring Clip Bolt)	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48192-37070	Wedge, Caster(For Rear Leaf Spring)	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48201-0W200	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48202-0W200	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48203-0W200	Leaf, Rear Helper Spring, No.3	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48210-0W200	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48212-0W200	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48214-0W200	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48215-0W200	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48216-0W200	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48217-0W200	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48218-0W200	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48221-0W200	Leaf, Rear Helper Spring, No.4	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48222-0W200	Leaf, Rear Helper Spring, No.5	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48223-0W200	Leaf, Rear Helper Spring, No.6	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48247-3B040	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48253-0W170	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48254-0W200	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48256-25050	Bolt, Hexagon(For Rear Spring Clip)	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
48284-37130	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
90170-A0001	New Genuine Part	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
90389-16028	Bimetal Formed Bush(For Front Spring)	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
90389-T0020	Bimetal Formed Bush(For Front Spring)	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )65T..DCRTP ; (0912- )75T..DCRTR)
