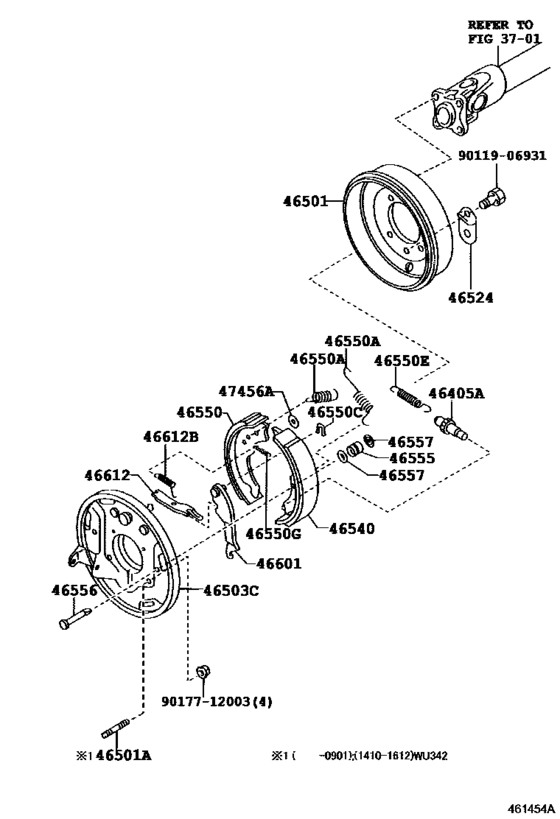

| 46501-37060 |
Drum Sub-Assy, Parking Brake |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 46503-37681 |
Plate Sub-Assy, Parking Brake |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 46511-37080 |
Drum Sub-Assy, Parking Brake |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 46511-37200 |
Drum Sub-Assy, Parking Brake |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 46524-37030 |
Cover, Parking Brake Dust |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 46530-37030 |
Shoe Assy, Parking Brake, Rh Or Center No.1 |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 46601-37680 |
Lever Sub-Assy, Parking Brake Shoe |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 46612-36010 |
Strut, Parking Brake Shoe Lever |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 47447-22010 |
Pin, Shoe Hold Down Spring |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 47449-20011 |
Cup, Brake Shoe Hold Down |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 90031-01170 |
Bolt, Serration(For Parking Brake Drum) |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 90119-06931 |
New Genuine Part |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 90177-12003 |
Plug, Shoe Adjusting Hole(For Parking Brake Shoe) |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 90213-06003 |
Washer, Type C(For Parking Brake Shoe) |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 90501-16025 |
Spring, Brake Shoe Hold Down |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 90504-10001 |
Spring, Compression(For Parking Brake Shoe Strut) |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 90506-14012 |
Spring, Tension, No.2(For Parking Brake Shoe Return) |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
| 90506-18001 |
Spring, Tension |
Parking Brake & Cable ([08.2012 - ] MYY5A (0610- )XZU327,347 ; (0610- )XZU337..80T ; (1208- )85T) |
