WU342

Toyota DYNA-TOYOACE · 2006 · 2,998 parts · 171 categories

← Back to categories

2,998 items

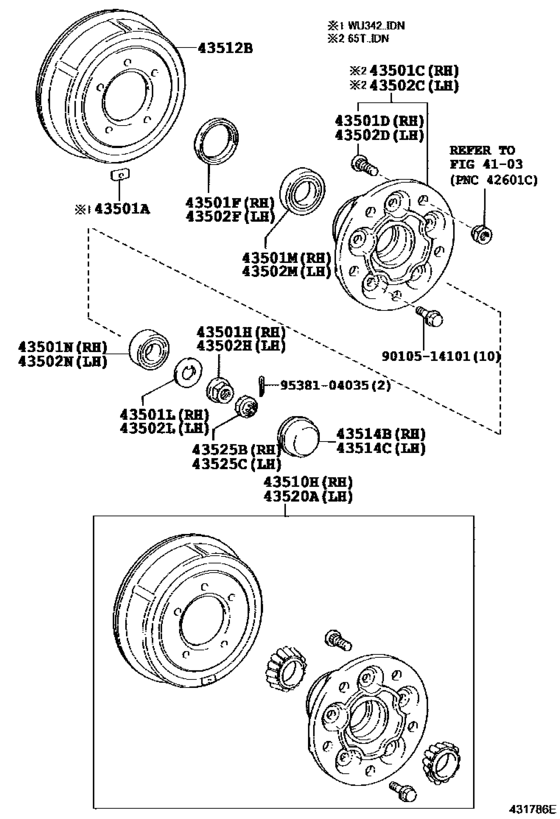

Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR) 18

#	OEM	Part name
43501	90942-02071	Bolt, Hub (For Rear Axle Rh)
43501	90942-T2004	Bolt, Hub (For Rear Axle Rh)
43501	90311-68003	Seal, Oil (For Front Axle Hub Rh)
43501	90178-28001	Nut (For Front Axle Shaft Rh)
43501	90214-29001	Washer, Claw (For Front Axle Hub Rh)
43501	90366-50069	Bearing (For Front Axle Hub Inner Rh)
43501	90366-35105	Bearing (For Front Axle Hub Outer Rh)
43502	90942-02072	Bolt, Hub (For Rear Axle Lh)
43502	90942-T2005	Bolt, Hub (For Rear Axle Lh)
43510	43510-09020	Hub & Disc(Drum) Assy, Front Axle, Rh
43510	43510-09021	Hub & Disc(Drum) Assy, Front Axle, Rh
43512	43512-0W040	Drum, Brake
43514	43514-37030	Cap, Front Axle Hub Grease, Rh
43520	43520-09020	Hub & Disc(Drum) Assy, Front Axle, Lh
43520	43520-09021	Hub & Disc(Drum) Assy, Front Axle, Lh
43525	43525-37010	Cap, Front Wheel Adjusting Lock, Rh
9010514101	90105-14101	BOLT WASHER BASED
9538104035	95381-04035	PIN

OEM	Part name	Category
43510-09020	Hub & Disc(Drum) Assy, Front Axle, Rh	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
43510-09021	Hub & Disc(Drum) Assy, Front Axle, Rh	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
43512-0W040	Drum, Brake	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
43514-37030	Cap, Front Axle Hub Grease, Rh	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
43520-09020	Hub & Disc(Drum) Assy, Front Axle, Lh	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
43520-09021	Hub & Disc(Drum) Assy, Front Axle, Lh	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
43525-37010	Cap, Front Wheel Adjusting Lock, Rh	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90105-14101	BOLT WASHER BASED	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90178-28001	Nut (For Front Axle Shaft Rh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90214-29001	Washer, Claw (For Front Axle Hub Rh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90311-68003	Seal, Oil (For Front Axle Hub Rh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90366-35105	Bearing (For Front Axle Hub Outer Rh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90366-50069	Bearing (For Front Axle Hub Inner Rh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90942-02071	Bolt, Hub (For Rear Axle Rh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90942-02072	Bolt, Hub (For Rear Axle Lh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90942-T2004	Bolt, Hub (For Rear Axle Rh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
90942-T2005	Bolt, Hub (For Rear Axle Lh)	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
95381-04035	PIN	Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR)
