Search › Model › WU342

WU342

Toyota DYNA-TOYOACE · 2006 · 2,998 parts · 171 categories

2,998 items

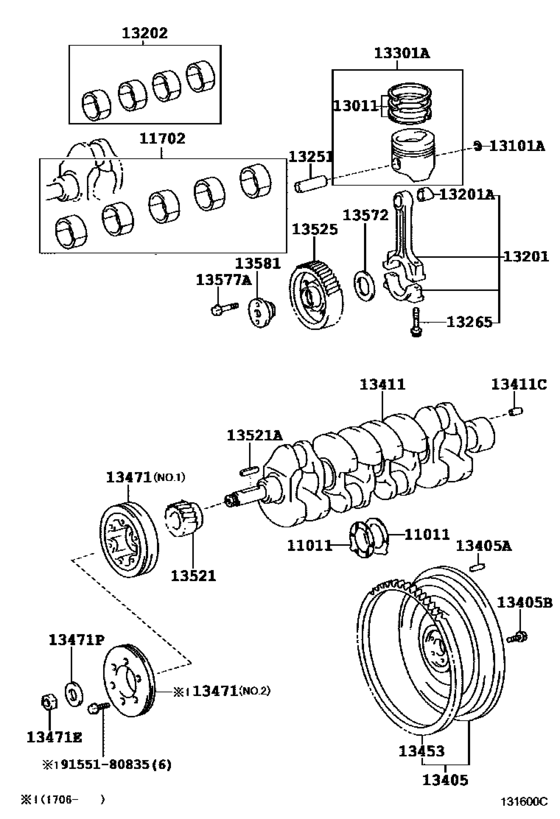

Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR) 48

#	OEM	Part name
11011	11011-78010	Washer Set, Crankshaft Thrust
11011	11011-E0030	Washer Set, Crankshaft Thrust
11011	11013-78010	Washer Set, Crankshaft Thrust
11702	11701-78100	Bearing Set, Crankshaft (STD)
11702	11701-E0040	Bearing Set, Crankshaft
11702	11701-E0070	Bearing Set, Crankshaft
11702	11708-78010	Bearing Set, Crankshaft
11702	11708-78020	Bearing Set, Crankshaft
11702	11708-78030	Bearing Set, Crankshaft
11702	11708-78040	Bearing Set, Crankshaft
13011	13011-78241	Ring Set, Piston
13101	90035-21020	Ring, Hole Snap(For Piston Pin)
13201	13201-78030	Rod Sub-Assy, Connecting
13201	13260-E0050	Rod Sub-Assy, Connecting
13201	13260-E0052	ROD ASSY, CONNE
13201	13271-89102	Bush(For Connecting Rod Small End)
13202	13041-78060	Bearing, Connecting Rod (STD)
13202	13041-E0690	Bearing, Connecting Rod
13202	13041-78080	Bearing Set, Connecting Rod
13202	13041-78090	Bearing Set, Connecting Rod
13202	13041-78100	Bearing Set, Connecting Rod
13202	13041-78110	Bearing Set, Connecting Rod
13202	13041-E0610	Bearing, Connecting Rod
13251	13251-89101	Pin, Piston
13251	13251-E0120	Pin, Piston
13251	13251-E0070	Pin, Piston
13265	13265-89103	Bolt, Connecting Rod
13301	13301-78081	Piston Set, W/piston Ring
13405	13450-78150	Flywheel Sub-Assy
13405	13450-78240	Flywheel Sub-Assy
13405	90250-10008	Pin, Straight(For Flywheel)
13405	90031-05112	Bolt, Flywheel Setting
13411	13411-78011	Crankshaft
13411	13411-E0180	Crankshaft
13411	13411-78080	Crankshaft
13411	13411-E0071	Crankshaft
13411	90387-14013	Pin, Straight(For Flywheel)
13453	13453-78030	Gear, Flywheel Ring
13471	13470-78161	Pulley, Crankshaft
13471	90170-27001	Nut, Hexagon(For Crankshaft Damper)
13471	17219-78010	Spacer(For Crankshaft Pulley)
13521	13521-78100	Gear Or Sprocket, Crankshaft Timing
13521	90281-06001	Key(For Crankshaft Timing Gear)
13525	13508-78280	Gear, Idle, No.1
13572	13572-78080	Plate, Idle Gear Thrust
13577	90038-01026	Bolt, Hexagon(For Idle Gear Bolt Lock)
13581	13581-78150	Shaft, Idle Gear, No.1
9155180835	91551-80835	Bolt (For Front Oil Pump Setting)

OEM	Part name	Category
11011-78010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11011-E0030	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11013-78010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11701-78100	Bearing Set, Crankshaft (STD)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11701-E0040	Bearing Set, Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11701-E0070	Bearing Set, Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11708-78010	Bearing Set, Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11708-78020	Bearing Set, Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11708-78030	Bearing Set, Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
11708-78040	Bearing Set, Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13011-78241	Ring Set, Piston	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13041-78060	Bearing, Connecting Rod (STD)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13041-78080	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13041-78090	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13041-78100	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13041-78110	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13041-E0610	Bearing, Connecting Rod	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13041-E0690	Bearing, Connecting Rod	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13201-78030	Rod Sub-Assy, Connecting	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13251-89101	Pin, Piston	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13251-E0070	Pin, Piston	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13251-E0120	Pin, Piston	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13260-E0050	Rod Sub-Assy, Connecting	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13260-E0052	ROD ASSY, CONNE	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13265-89103	Bolt, Connecting Rod	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13271-89102	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13301-78081	Piston Set, W/piston Ring	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13411-78011	Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13411-78080	Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13411-E0071	Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13411-E0180	Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13450-78150	Flywheel Sub-Assy	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13450-78240	Flywheel Sub-Assy	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13453-78030	Gear, Flywheel Ring	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13470-78161	Pulley, Crankshaft	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13508-78280	Gear, Idle, No.1	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13521-78100	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13572-78080	Plate, Idle Gear Thrust	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
13581-78150	Shaft, Idle Gear, No.1	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
17219-78010	Spacer(For Crankshaft Pulley)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90031-05112	Bolt, Flywheel Setting	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90035-21020	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90038-01026	Bolt, Hexagon(For Idle Gear Bolt Lock)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90170-27001	Nut, Hexagon(For Crankshaft Damper)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90250-10008	Pin, Straight(For Flywheel)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90281-06001	Key(For Crankshaft Timing Gear)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90387-14013	Pin, Straight(For Flywheel)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
91551-80835	Bolt (For Front Oil Pump Setting)	Crankshaft & Piston ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
