Search › Model › WU342

WU342

Toyota DYNA-TOYOACE · 2006 · 2,998 parts · 171 categories

2,998 items

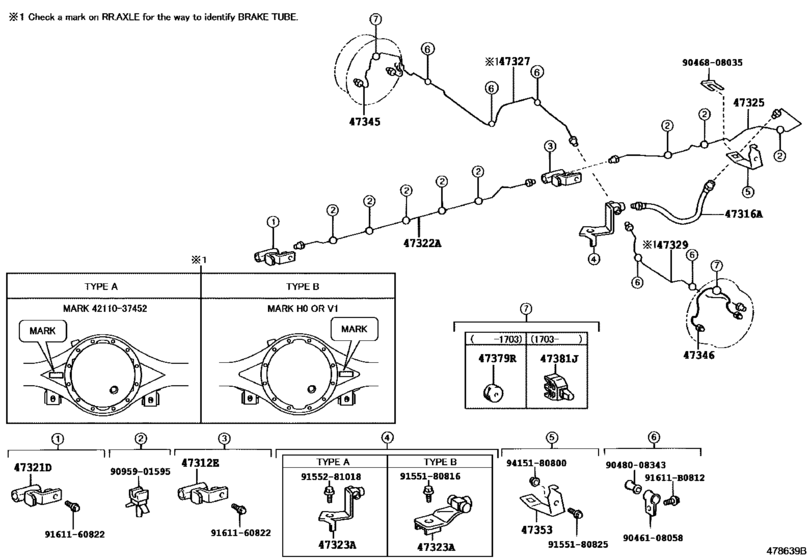

Brake Tube & Clamp ([12.2009 - ] (0912- )85T) 29

#	OEM	Part name
47312	90412-12060	Way, No.2(For Front Brake Tube)
47316	90947-02B78	Hose, Flexible(For Rear Brake Tube)
47322	47322-0W020	Tube, Rear Brake, Frame No.2
47323	47391-37600	Way, No.3(For Rear Brake Tube)
47323	90413-10321	Way, No.3(For Rear Brake Tube)
47325	47325-0W010	Tube, Rear Brake, No.5
47327	47327-0W010	Tube, Rear Brake, No.7
47327	47327-0W110	Tube, Rear Brake, No.7
47327	47327-F1010	Tube, Rear Brake, No.7
47329	47329-0W010	Tube, Rear Brake, No.9
47329	47329-0W110	Tube, Rear Brake, No.9
47329	47329-F1010	Tube, Rear Brake, No.9
47345	47345-37060	Tube, Wheel Cylinder, Rear Rh
47345	47345-F1010	Tube, Wheel Cylinder, Rear Rh
47346	47346-37020	Tube, Wheel Cylinder, Rear Lh
47353	47353-0W030	Bracket, Flexible Hose(For Rear)
47379	47379-37010	Damper, Tube(For Front)
47381	47381-F1010	Bracket, Brake Tube Clamp No.1
91611	91611-B0812	Bolt
9046108058	90461-08058	New Genuine Part
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048008343	90480-08343	Grommet, No.2(For Front Brake Tube)
9095901595	90959-01595	Clamp, Brake Tube, No.1
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9155281018	91552-81018	New Genuine Part
9161160822	91611-60822	Bolt
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
47322-0W020	Tube, Rear Brake, Frame No.2	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47325-0W010	Tube, Rear Brake, No.5	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47327-0W010	Tube, Rear Brake, No.7	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47327-0W110	Tube, Rear Brake, No.7	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47327-F1010	Tube, Rear Brake, No.7	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47329-0W010	Tube, Rear Brake, No.9	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47329-0W110	Tube, Rear Brake, No.9	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47329-F1010	Tube, Rear Brake, No.9	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47345-37060	Tube, Wheel Cylinder, Rear Rh	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47345-F1010	Tube, Wheel Cylinder, Rear Rh	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47346-37020	Tube, Wheel Cylinder, Rear Lh	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47353-0W030	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47379-37010	Damper, Tube(For Front)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47381-F1010	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
47391-37600	Way, No.3(For Rear Brake Tube)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
90412-12060	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
90413-10321	Way, No.3(For Rear Brake Tube)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
90461-08058	New Genuine Part	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
90468-08035	CLIP	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
90480-08343	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
90947-02B78	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
90959-01595	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
91551-80825	Bolt(For Cylinder Head Set Sub)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
91552-81018	New Genuine Part	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
91611-60822	Bolt	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
91611-B0812	Bolt	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)
94151-80800	Nut (For Transmission Control Cable)	Brake Tube & Clamp ([12.2009 - ] (0912- )85T)

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 171
Collected: 2026-08-03
