Search › Model › WU342

WU342

Toyota DYNA-TOYOACE · 2006 · 2,998 parts · 171 categories

2,998 items

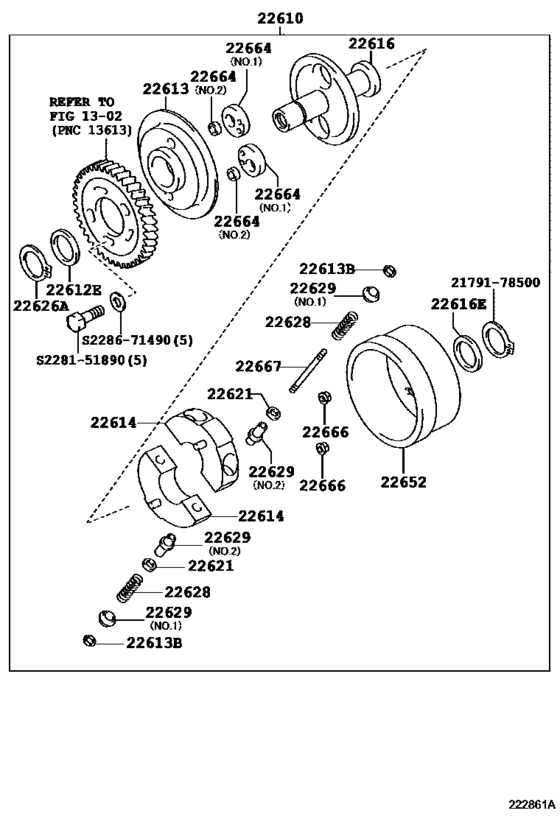

Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR) 45

#	OEM	Part name
22610	22610-78500	Timer Assy, Automatic
22610	22610-EV020	Timer Assy, Automatic
22612	90069-34015	Washer, Special
22612	90069-34016	Washer, Special
22612	90069-34017	Washer, Special
22612	90069-34018	Washer, Special
22612	90069-34019	Washer, Special
22612	90069-34020	Washer, Special
22612	90069-34021	Washer, Special
22612	90069-34022	Washer, Special
22612	90069-34023	Washer, Special
22612	90069-34024	Washer, Special
22612	90069-34025	Washer, Special
22613	22613-78500	Flange, Timer Driving
22613	26314-78500	Retainer, Timer Spring Seat
22614	22614-78500	Weight, Timer
22616	22616-78500	Hub, Timer
22616	90069-34026	Washer, Plate(For Timer Hub)
22616	90069-34027	Washer, Plate(For Timer Hub)
22616	90069-34028	Washer, Plate(For Timer Hub)
22616	90069-34029	Washer, Plate(For Timer Hub)
22616	90069-34030	Washer, Plate(For Timer Hub)
22616	90069-34031	Washer, Plate(For Timer Hub)
22616	90069-34032	Washer, Plate(For Timer Hub)
22616	90069-34033	Washer, Plate(For Timer Hub)
22616	90069-34034	Washer, Plate(For Timer Hub)
22616	90069-34035	Washer, Plate(For Timer Hub)
22616	90069-34036	Washer, Plate(For Timer Hub)
22616	90069-34037	Washer, Plate(For Timer Hub)
22621	90069-34009	Washer, Timer Spring Adjust
22621	90069-34010	Washer, Timer Spring Adjust
22621	90069-34011	Washer, Timer Spring Adjust
22621	90069-34012	Washer, Timer Spring Adjust
22621	90069-34013	Washer, Timer Spring Adjust
22621	90069-34014	Washer, Timer Spring Adjust
22626	21792-78500	Ring, Clamp(For Drive Gear)
22628	90069-51015	Spring, Timer Sub
22628	90069-51016	Spring, Timer Sub
22628	90069-51017	Spring, Timer Sub
22629	22366-78500	Seat, Spring(For Timer Spring)
22629	22367-78500	Seat, Spring(For Timer Spring)
22652	22612-78500	Cover Sub-Assy, Timer
22666	22666-78500	Roller, Timer
22667	22667-78500	Sleeve
2179178500	21791-78500	Ring, Snap, No.1(for Carburetor Link)

OEM	Part name	Category
21791-78500	Ring, Snap, No.1(for Carburetor Link)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
21792-78500	Ring, Clamp(For Drive Gear)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22366-78500	Seat, Spring(For Timer Spring)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22367-78500	Seat, Spring(For Timer Spring)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22610-78500	Timer Assy, Automatic	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22610-EV020	Timer Assy, Automatic	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22612-78500	Cover Sub-Assy, Timer	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22613-78500	Flange, Timer Driving	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22614-78500	Weight, Timer	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22616-78500	Hub, Timer	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22666-78500	Roller, Timer	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
22667-78500	Sleeve	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
26314-78500	Retainer, Timer Spring Seat	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34009	Washer, Timer Spring Adjust	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34010	Washer, Timer Spring Adjust	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34011	Washer, Timer Spring Adjust	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34012	Washer, Timer Spring Adjust	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34013	Washer, Timer Spring Adjust	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34014	Washer, Timer Spring Adjust	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34015	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34016	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34017	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34018	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34019	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34020	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34021	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34022	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34023	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34024	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34025	Washer, Special	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34026	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34027	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34028	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34029	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34030	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34031	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34032	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34033	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34034	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34035	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34036	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-34037	Washer, Plate(For Timer Hub)	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-51015	Spring, Timer Sub	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-51016	Spring, Timer Sub	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
90069-51017	Spring, Timer Sub	Automatic Timer ([12.2009 - ] (0912- )W04D..WU302..T3 ; (0912- )W04D..WU 342..DCRTP,DCRTR)
