WU302

Toyota DYNA-TOYOACE · 2006 · 4,900 parts · 299 categories
WU302 ×

← Back to categories

4,900 items

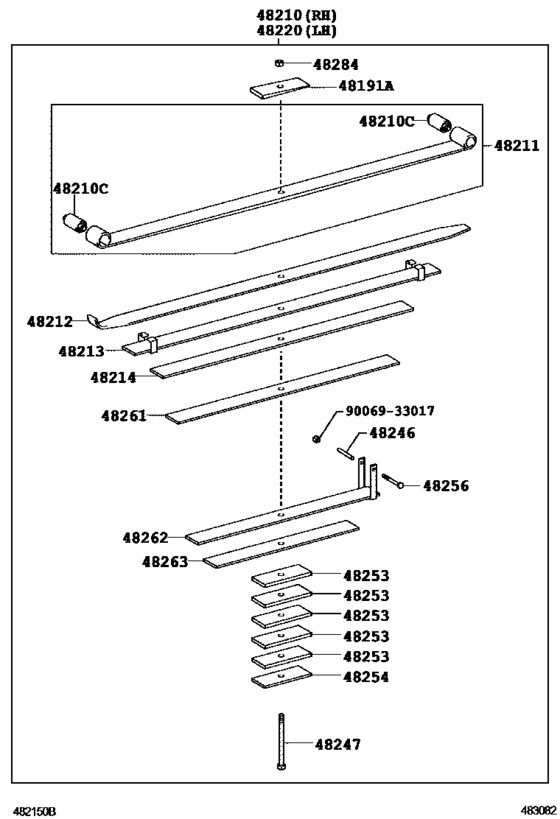

Rear Spring & Shock Absorber ([12.2006 - 06.2017] MAIN 4+HELPER 3-LEAF (0612-1706)WU302..T3) 18
#OEMPart name
48191 48192-37110 Wedge, Caster(For Rear Leaf Spring)
48210 48210-0W120 Spring Assy, Rear Rh
48210 90389-16003 Bimetal Formed Bush(For Front Spring)
48210 90389-T0021 Bush(For Rear Spring Leaf)
48211 48201-0W120 Leaf, Rear Spring, No.1
48212 48212-0W120 Leaf, Rear Spring, No.2
48213 48213-0W120 Leaf, Rear Spring, No.3
48214 48214-0W120 Leaf, Rear Spring, No.4
48246 48246-0W120 Case, Rear Spring Clip Bolt
48247 48247-0W120 Bolt, Rear Spring, Center
48253 48253-0W120 Spacer, Rear Spring, No.1
48254 48254-0W120 Spacer, Rear Spring Leaf
48256 48256-0W120 Bolt, Hexagon(For Rear Spring Clip Set)
48261 48215-0W120 Leaf, Rear Helper Spring, No.1
48262 48216-0W120 Leaf, Rear Helper Spring, No.2
48263 48217-0W120 Leaf, Rear Helper Spring, No.3
48284 48155-0W190 Nut, Front Spring Center Bolt
9006933017 90069-33017 New Genuine Part
