| 04474-36160 |
Cylinder Kit, Rear Wheel |

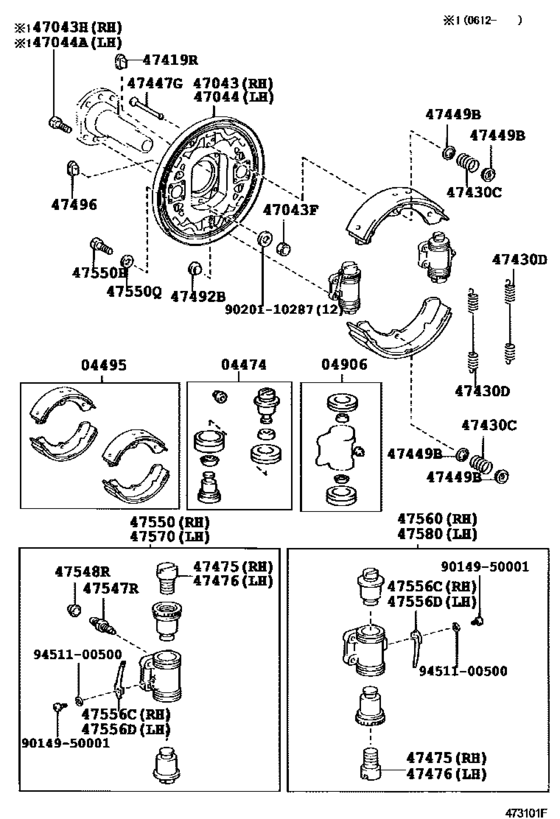

Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 04474-36170 |
Cylinder Kit, Rear Wheel |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 04494-25070 |
Shoe Kit, Front Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 04906-36240 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47043-36051 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47044-36011 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47447-36020 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47491-36020 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47492-06010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47492-28010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47547-12010 |
Plug, Bleeder(For Release Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47550-36051 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47553-36021 |
Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47554-36021 |
Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47555-36020 |
Spring, Adjuster Lock(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47560-36051 |
Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47570-36051 |
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 47580-36051 |
Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 90101-08081 |
Bolt(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 90114-10063 |
Bolt, No.1(For Rear Brake Backing Plate Rh) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 90149-50001 |
New Genuine Part |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 90201-08002 |
Washer(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 90201-10287 |
Washer(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 90501-20012 |
Spring(For Front Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 90506-29006 |
Spring, Tension(For Front Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 94130-01002 |
Nut, Booster Sleeve Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
| 94511-00500 |
Washer, Cover Set, No.2 |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209- )BU303,343,WU30#,342..48T,65T..DCRTH,D CRTP,DSL..IDN) |
