WU302

Toyota DYNA-TOYOACE · 2006 · 4,900 parts · 299 categories

4,900 items

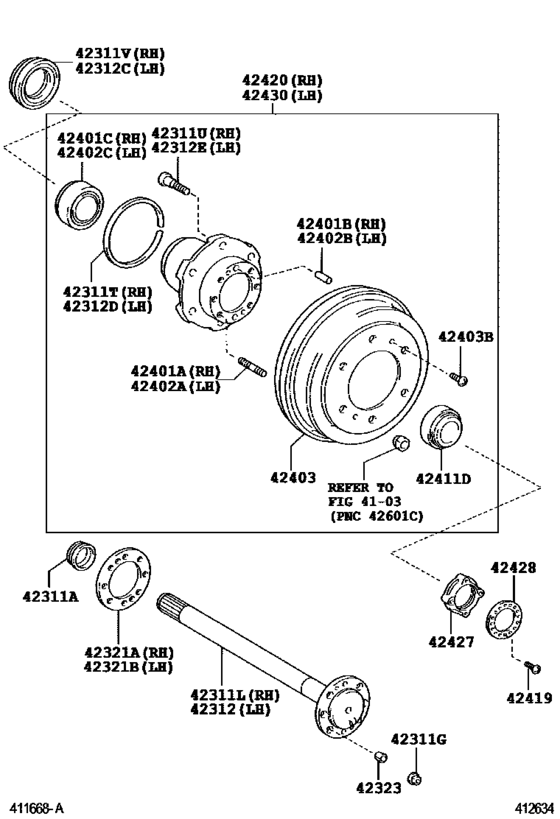

Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3) 25

#	OEM	Part name
42311	90310-40001	Seal, Oil (For Rear Axle Shaft)
42311	90179-10067	Nut (For Rear Axle Shaft)
42311	42311-0W010	Shaft, Rear Axle, Rh
42311	90520-99065	Ring, Snap (For Rear Axle Shaft)
42311	90942-02024	Bolt, Hub (For Rear Axle Rh)
42311	90942-T2006	Bolt, Hub (For Rear Axle Rh)
42311	90311-75003	Seal, Oil (For Rear Axle Shaft)
42312	90942-02025	Bolt, Hub (For Rear Axle Lh)
42312	90942-T2007	Bolt, Hub (For Rear Axle Lh)
42321	42321-0W020	Gasket, Rear Axle Shaft, Rh
42323	42323-36010	Washer, Cone (For Rear Axle Shaft)
42401	90116-10191	Bolt, Stud (For Rear Axle Hub Rh)
42401	90250-10055	Pin, Straight (For Rear Axle Hub Rh)
42401	90368-57010	Bearing (For Rear Axle Hub Inner Rh)
42403	43512-0W050	Drum Sub-Assy, Rear Brake
42403	90113-10035	Bolt, Set (For Rear Brake Drum Setting)
42411	90368-52043	Bearing(For Rear Differential Case)
42419	93311-16012	Screw, Rear Axle Bearing Lock Nut
42420	42420-09010	Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42420	42420-09011	Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42427	42427-0W010	Nut, Rear Axle Bearing Lock
42427	42427-0W020	Nut, Rear Axle Bearing Lock
42428	42428-36020	Plate, Rear Axle Lock Nut
42430	42430-09010	Hub (Or Shaft) & Brake Drum Rear Axle, Lh
42430	42430-09011	Hub (Or Shaft) & Brake Drum Rear Axle, Lh

OEM	Part name	Category
42311-0W010	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42321-0W020	Gasket, Rear Axle Shaft, Rh	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42323-36010	Washer, Cone (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42420-09010	Hub (Or Shaft) & Brake Drum Rear Axle, Rh	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42420-09011	Hub (Or Shaft) & Brake Drum Rear Axle, Rh	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42427-0W010	Nut, Rear Axle Bearing Lock	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42427-0W020	Nut, Rear Axle Bearing Lock	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42428-36020	Plate, Rear Axle Lock Nut	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42430-09010	Hub (Or Shaft) & Brake Drum Rear Axle, Lh	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
42430-09011	Hub (Or Shaft) & Brake Drum Rear Axle, Lh	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
43512-0W050	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90113-10035	Bolt, Set (For Rear Brake Drum Setting)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90116-10191	Bolt, Stud (For Rear Axle Hub Rh)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90179-10067	Nut (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90250-10055	Pin, Straight (For Rear Axle Hub Rh)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90310-40001	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90311-75003	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90368-52043	Bearing(For Rear Differential Case)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90368-57010	Bearing (For Rear Axle Hub Inner Rh)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90520-99065	Ring, Snap (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90942-02024	Bolt, Hub (For Rear Axle Rh)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90942-02025	Bolt, Hub (For Rear Axle Lh)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90942-T2006	Bolt, Hub (For Rear Axle Rh)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
90942-T2007	Bolt, Hub (For Rear Axle Lh)	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
93311-16012	Screw, Rear Axle Bearing Lock Nut	Rear Axle Shaft & Hub ([12.2006 - ] (0612- )WU302..T3)
