Search › Model › WU302

WU302

Toyota DYNA-TOYOACE · 2006 · 4,900 parts · 299 categories

4,900 items

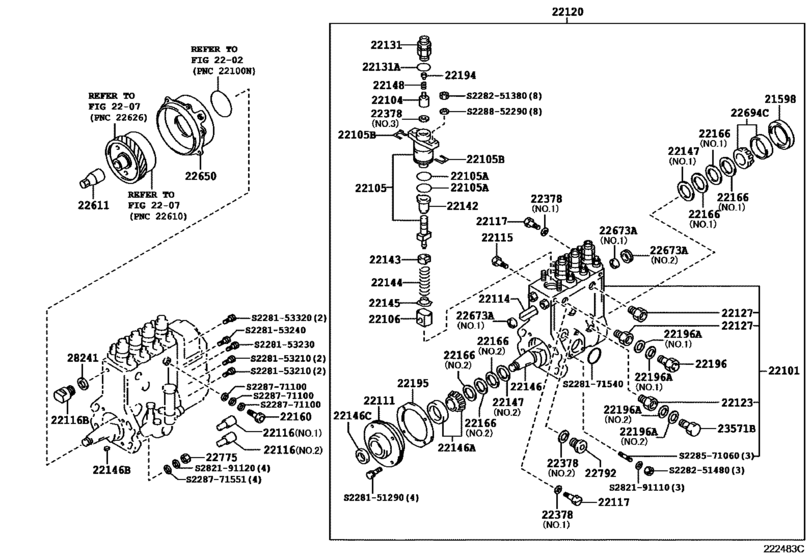

Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR) 74

#	OEM	Part name
0	90091-20608	BOLT
0	90099-14050	Ring, O(For Fuel Feed Pump)
0	90092-10101	Nut (For Front Wiper Arm Setting)
0	90099-04071	New Genuine Part
0	94511-00600	Washer, Lock, No.2
21598	21598-78500	Retainer(For Injection Pump Ball Bearing)
22101	22101-78500	Housing Sub-Assy, Injection Pump
22101	22101-EV020	Housing Sub-Assy, Injection Pump
22104	22104-78500	Valve Sub-Assy, Injection Pump Delivery
22105	22105-78500	Element Sub-Assy, Injection Pump
22105	90069-38010	Ring, O(For Pump Element)
22105	90069-55003	Shim(For Injection Pump Element)
22105	90069-55004	Shim(For Injection Pump Element)
22105	90069-55005	Shim(For Injection Pump Element)
22105	90069-55006	Shim(For Injection Pump Element)
22105	90069-55007	Shim(For Injection Pump Element)
22105	90069-55008	Shim(For Injection Pump Element)
22105	90069-55009	Shim(For Injection Pump Element)
22105	90069-55010	Shim(For Injection Pump Element)
22105	90069-55011	Shim(For Injection Pump Element)
22105	90069-55012	Shim(For Injection Pump Element)
22105	90069-55013	Shim(For Injection Pump Element)
22105	90069-55014	Shim(For Injection Pump Element)
22105	90069-55015	Plate, Tappet Adjusting Shim
22105	90069-55016	Shim(For Injection Pump Element)
22106	22106-78500	Tappet Sub-Assy, Injection Pump
22111	22111-78500	Cover, Injection Pump Camshaft Bearing
22111	22111-EV020	Cover, Injection Pump Camshaft Bearing
22114	22114-78500	Rack, Control
22115	22115-78500	Screw, Rack Guide
22115	22115-78140	Screw, Rack Guide
22116	22116-78500	Cover, Control Rack
22117	22117-78500	Screw, Air Bleeder
22117	22117-EV010	Screw, Air Bleeder
22123	21751-EV020	Nipple, Drain Plug
22123	22123-78500	Nipple, Drain Plug
22127	22127-78500	Union, Injection Pump Fuel Inlet
22131	22131-78500	Holder, Delivery Valve
22131	90069-38009	Ring, O(For Delivery Valve Holder)
22131	90099-14070	Ring, O(For Delivery Valve Holder)
22142	22142-78500	Sleeve, Plunger Control
22143	22143-78500	Seat, Spring Upper
22144	22144-78500	Spring, Pump Plunger
22145	22145-78050	Seat, Spring, Lower
22146	22146-78500	Camshaft, Injection Pump
22146	22146-EV020	Camshaft, Injection Pump
22146	90069-40004	Bearing(For Injection Camshaft)
22146	22353-78500	Key(For Injection Pump Camshaft)
22146	23129-78500	Seal, Oil, Injection Pump Camshaft
22147	22147-78030	Ring, Camshaft Adjust
22148	22148-78500	Spring, Delivery Valve
22160	22160-78500	Screw Sub-Assy, Overflow
22166	22166-78500	Plate, Camshaft Shim
22194	22194-78500	Stopper, Delivery Valve
22195	22195-78500	Gasket, Bearing Cover
22195	22195-EV010	Gasket, Bearing Cover
22196	22196-78500	Screw, Fuel Inlet Follow
22196	90099-18010	Screw, Fuel Pipe Follow
22196	90099-01502	Washer(For Inlet Follow Screw)
22196	90099-01504	Washer(For Inlet Follow Screw)
22378	22113-77090	Washer, Drain Screw
22378	22378-78500	Washer, Drain Screw
22378	22378-78501	Washer, Drain Screw
22611	22611-78500	Nut, Timer Round
22611	22611-EV010	Nut, Timer Round
22650	22650-78500	Cover Assy, Timer
22650	22650-E0050	Cover Assy, Timer
22650	22650-E0051	Cover Assy, Timer
22673	22673-78500	Bush, Screw
22694	22694-78500	Bearing(For Injection Camshaft)
22775	22775-78500	Nut, Lock(For Injection Pump)
22792	22792-78500	Plug, Screw
23571	90099-18005	Screw, Fuel Inlet Follow
28241	28241-78500	Washer, Contact Plate Lock

OEM	Part name	Category
21598-78500	Retainer(For Injection Pump Ball Bearing)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
21751-EV020	Nipple, Drain Plug	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22101-78500	Housing Sub-Assy, Injection Pump	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22101-EV020	Housing Sub-Assy, Injection Pump	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22104-78500	Valve Sub-Assy, Injection Pump Delivery	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22105-78500	Element Sub-Assy, Injection Pump	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22106-78500	Tappet Sub-Assy, Injection Pump	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22111-78500	Cover, Injection Pump Camshaft Bearing	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22111-EV020	Cover, Injection Pump Camshaft Bearing	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22113-77090	Washer, Drain Screw	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22114-78500	Rack, Control	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22115-78140	Screw, Rack Guide	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22115-78500	Screw, Rack Guide	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22116-78500	Cover, Control Rack	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22117-78500	Screw, Air Bleeder	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22117-EV010	Screw, Air Bleeder	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22123-78500	Nipple, Drain Plug	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22127-78500	Union, Injection Pump Fuel Inlet	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22131-78500	Holder, Delivery Valve	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22142-78500	Sleeve, Plunger Control	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22143-78500	Seat, Spring Upper	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22144-78500	Spring, Pump Plunger	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22145-78050	Seat, Spring, Lower	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22146-78500	Camshaft, Injection Pump	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22146-EV020	Camshaft, Injection Pump	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22147-78030	Ring, Camshaft Adjust	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22148-78500	Spring, Delivery Valve	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22160-78500	Screw Sub-Assy, Overflow	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22166-78500	Plate, Camshaft Shim	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22194-78500	Stopper, Delivery Valve	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22195-78500	Gasket, Bearing Cover	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22195-EV010	Gasket, Bearing Cover	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22196-78500	Screw, Fuel Inlet Follow	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22353-78500	Key(For Injection Pump Camshaft)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22378-78500	Washer, Drain Screw	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22378-78501	Washer, Drain Screw	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22611-78500	Nut, Timer Round	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22611-EV010	Nut, Timer Round	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22650-78500	Cover Assy, Timer	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22650-E0050	Cover Assy, Timer	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22650-E0051	Cover Assy, Timer	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22673-78500	Bush, Screw	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22694-78500	Bearing(For Injection Camshaft)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22775-78500	Nut, Lock(For Injection Pump)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
22792-78500	Plug, Screw	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
23129-78500	Seal, Oil, Injection Pump Camshaft	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
28241-78500	Washer, Contact Plate Lock	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-38009	Ring, O(For Delivery Valve Holder)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-38010	Ring, O(For Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-40004	Bearing(For Injection Camshaft)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55003	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55004	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55005	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55006	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55007	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55008	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55009	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55010	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55011	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55012	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55013	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55014	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55015	Plate, Tappet Adjusting Shim	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90069-55016	Shim(For Injection Pump Element)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90091-20608	BOLT	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90092-10101	Nut (For Front Wiper Arm Setting)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90099-01502	Washer(For Inlet Follow Screw)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90099-01504	Washer(For Inlet Follow Screw)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90099-04071	New Genuine Part	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90099-14050	Ring, O(For Fuel Feed Pump)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90099-14070	Ring, O(For Delivery Valve Holder)	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90099-18005	Screw, Fuel Inlet Follow	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
90099-18010	Screw, Fuel Pipe Follow	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
94511-00600	Washer, Lock, No.2	Injection Pump Body ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR)
