WU302

Toyota DYNA-TOYOACE · 2006 · 4,900 parts · 299 categories
WU302 ×

← Back to categories

4,900 items

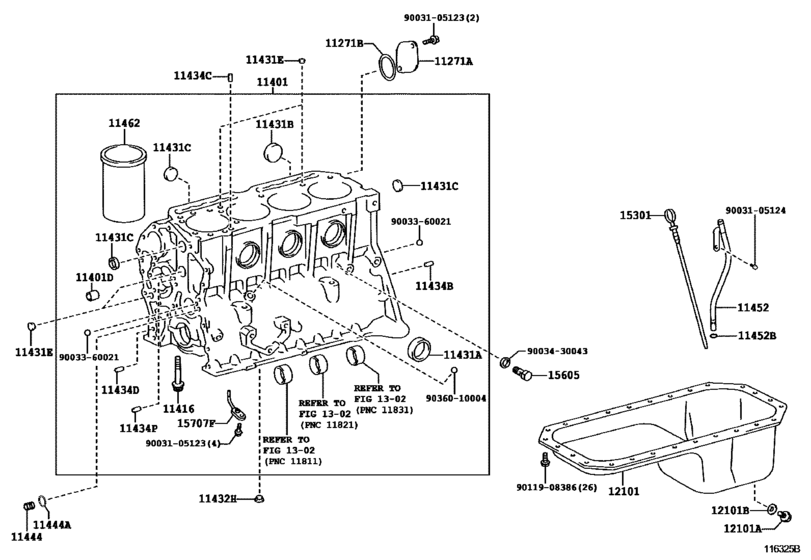

Cylinder Block ([12.2009 - ] (0912- )W04D..WU302,342..IDN) 37
#OEMPart name
11271 11271-78120 Cover, Cylinder Block, Rear
11271 90033-01098 Ring, O(For Cylinder Block Rear Plate)
11401 11401-78311 Block Sub-Assy, Cylinder
11401 11401-78313 Block Sub-Assy, Cylinder
11401 11401-78312 Block Sub-Assy, Cylinder
11401 90999-71055 Bush(For Oil Pump Cover)
11416 90910-02156 Bolt(For Crankshaft Bearing Cap Set)
11431 90033-31026 Plug, Tight, No.4
11431 90033-31035 Plug, Tight, No.2(For Cylinder Block)
11431 90033-31034 Plug, Tight, No.3(For Cylinder Block)
11431 90033-31020 Plug, Tight, No.3
11432 90344-21001 Plug, W/head Taper Screw, No.5
11434 90032-50060 Pin, Straight(For Clutch Housing Set)
11434 90032-50049 Pin, Straight(For Clutch Housing Set)
11434 90032-50050 Pin, Straight(For Timing Gear Cover Set)
11434 90250-05022 Pin, Straight(For Oil Pump Set)
11444 11444-78020 Plug, Hole
11444 90033-01099 Ring, O
11452 11409-78180 Guide, Oil Level Gage
11452 90033-01092 Ring, O(For Oil Level Gage Guide)
11462 11461-78021 Liner, Cylinder
11462 11461-78031 Liner, Cylinder
11462 11461-78051 Liner, Cylinder
12101 12101-78140 Pan Sub-Assy, Oil
12101 90033-41020 Plug(For Oil Pan Drain)
12101 90034-30047 Gasket(For Oil Pan Drain Plug)
15301 15301-78230 Gage Sub-Assy, Oil Level
15605 15703-78030 Valve Sub-Assy, Oil Check
15605 15602-E0010 Valve Sub-Assy, Oil Check
15707 11418-78020 Nozzle Sub-Assy, Oil, No.1
15707 11418-78080 Pipe Sub-Assy, Oil
9003105123 90031-05123 Bolt(For Cylinder Head Cover)
9003105124 90031-05124 New Genuine Part
9003360021 90033-60021 New Genuine Part
9003430043 90034-30043 Gasket(For Oil Check Valve)
9011908386 90119-08386 New Genuine Part
9036010004 90360-10004 New Genuine Part
