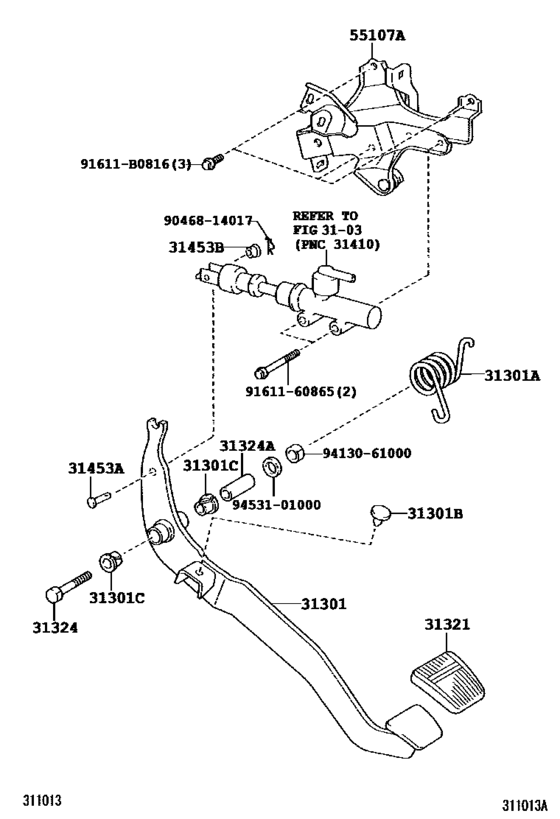

| 31301-0W030 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 31301-0W040 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 31321-0B010 |
Pad, Clutch Pedal |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 55107-0W030 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 55107-0W031 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 55107-0W041 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 90240-08006 |
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 90386-08002 |
Bush(For Clutch Pedal Over Center Spring Pin) |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 90386-13007 |
Bush(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 90387-10004 |
Collar, Clutch Pedal Shaft |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 90468-14017 |
Clip, No.2(For Parking Brake) |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 90949-T3004 |
Spring(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 91112-61070 |
Shaft, Clutch Pedal |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 91611-60865 |
Bolt(For Rocker Support Set) |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 91611-B0816 |
Bolt |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 94130-61000 |
Nut(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
| 94531-01000 |
WASHER |
Clutch Pedal & Flexible Hose ([12.2006 - ] (0209-0612)BU303,343,WU300,340..IDN ; (0612- )DCRTH,DCRTP..T3) |
