Search › Model › WU302

WU302

Toyota DYNA-TOYOACE · 2006 · 4,900 parts · 299 categories
WU302 ×

← Back to categories

4,900 items

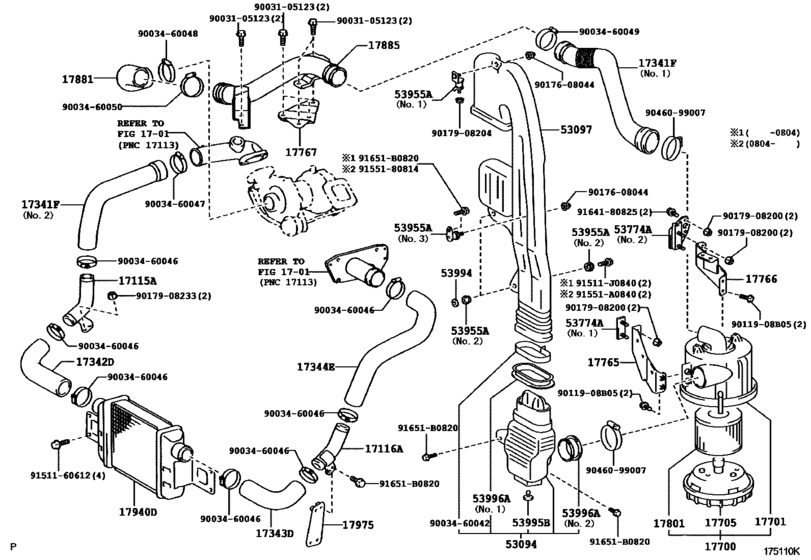

Air Cleaner ([10.2006 - ] (0610- )W04D..WU302,342..GEN) 57
#OEMPart name
17115 17115-78030 Pipe, Intake, No.2
17116 17116-78030 Pipe, Intake, No.3
17341 17030-78240 Hose, Air, No.1
17341 17341-78150 Hose, Air, No.1
17342 17342-78070 Hose, Air, No.2
17342 17342-78071 Hose, Air, No.2
17343 17343-78060 Hose, Air, No.3
17343 17343-78061 Hose, Air, No.3
17344 17344-78080 Hose, Air, No.4
17700 17700-78280 Cleaner Assy, Air
17700 17700-78281 Cleaner Assy, Air
17701 17701-78240 Case Sub-Assy, Air Cleaner
17701 17701-78241 Case Sub-Assy, Air Cleaner
17705 17705-78040 Cap Sub-Assy, Air Cleaner
17765 17765-78031 Stay, Air Cleaner, No.1
17766 17766-78031 Stay, Air Cleaner, No.2
17767 17771-78090 Bracket, Air Cleaner
17767 17771-E0020 Bracket, Air Cleaner
17801 17801-78040 Element Sub-Assy, Air Cleaner Filter
17881 17341-78180 Hose, Air
17885 17885-78060 Pipe, Air Cleaner
17885 17885-E0020 Pipe, Air Cleaner
17940 17940-78120 Intercooler Assy
17940 17940-78121 Intercooler Assy
17975 17975-78010 Stay, Cool Air, No.2
53094 53094-37080 Inlet, Air Cleaner Pipe, No.3
53097 53097-37310 Inlet Sub-Assy
53774 53774-37050 Bracket, Air Cleaner Mounting, No.2
53774 53774-37091 Bracket, Air Cleaner Mounting, No.2
53955 53955-37010 Cushion, Air Cleaner Inlet No.1
53955 53955-37020 Cushion, Air Cleaner Inlet No.1
53955 53955-37030 Cushion, Air Cleaner Inlet No.1
53994 53994-37020 Retainer, Air Cleaner Inlet Pipe
53995 53995-37020 Plug, Air Cleaner Inlet
53996 53996-37040 Packing, Air Cleaner Inlet Pipe
53996 53996-37051 Packing, Air Cleaner Inlet Pipe
91511 91511-J0840 Bolt(For Alternator)
91551 91551-A0840 Bolt(For Head To Camshaft Bearing Cap)
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011908 90119-08B05 New Genuine Part
9003105123 90031-05123 Bolt(For Cylinder Head Cover)
9003460042 90034-60042 New Genuine Part
9003460046 90034-60046 Clamp, Hose, No.2(For Intercooler)
9003460047 90034-60047 Clamp, Hose, No.2(For Intercooler)
9003460048 90034-60048 Clamp, Hose, No.2(For Intercooler) - AIR, NO.2(FOR INTERCOOLER)
9003460049 90034-60049 Clamp, Intake Pipe
9003460050 90034-60050 Clamp Or Clip(For Air Hose, No.2) - AIR, NO.2(FOR INTERCOOLER)
9017608044 90176-08044 NUT
9017908200 90179-08200 New Genuine Part
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9017908233 90179-08233 NUT
9046099007 90460-99007 Clamp(For Air Cleaner Hose, No.1)
9151160612 91511-60612 BOLT
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9164180825 91641-80825 BOLT WWASHER
