WU26

Toyota DYNA-TOYOACE · 1983 · 3,754 parts · 170 categories

3,754 items

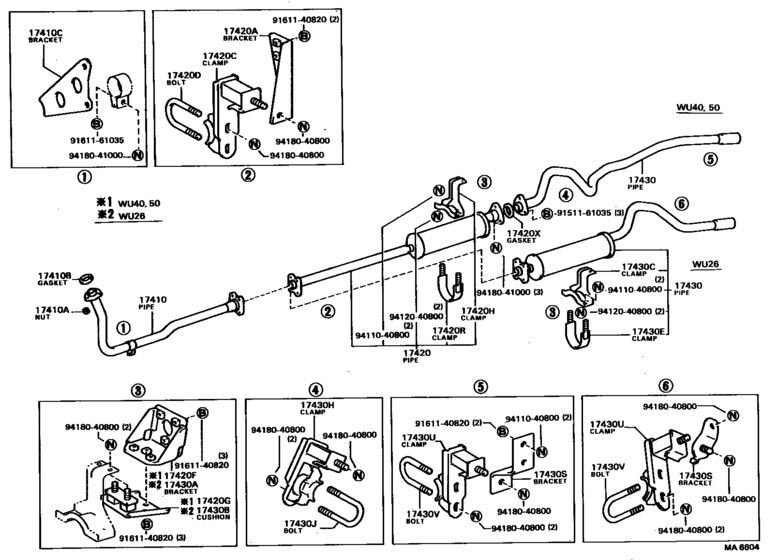

Exhaust Pipe ([04.1983 - ] (8304- )1W) 23

#	OEM	Part name
17410	17401-78010	Pipe Assy, Exhaust, Front
17410	90179-10010	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06005	Gasket, Exhaust Pipe
17410	90917-06042	Gasket, Exhaust Pipe
17410	17571-78010	Bracket, Exhaust Pipe Front (For Front)
17430	17430-47050	Pipe Assy, Exhaust, Tail
17430	17572-56080	Bracket, Exhaust Pipe, Center
17430	17562-58010	Cushion, Exhaust Pipe Center, Center
17430	17576-56020	Clamp No.1, Exhaust Pipe Center, Center
17430	17504-56010	Clamp No.2, Exhaust Pipe Center, Center
17430	17575-78010	Bracket, Exhaust Tail Pipe (For Rear)
17430	17509-58010	Clamp No.1, Exhaust Pipe Center, Front
17430	90117-08020	Bolt Or Ring, Exhaust Pipe Center, Front
9151161035	91511-61035	Bolt(For Transaxle Case & Engine Setting)
9151161035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161161035	91611-61035	BOLT
9161161035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9418040800	94180-40800	NUT
9418041000	94180-41000	Nut

OEM	Part name	Category
17401-78010	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.1983 - ] (8304- )1W)
17430-47050	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([04.1983 - ] (8304- )1W)
17504-56010	Clamp No.2, Exhaust Pipe Center, Center	Exhaust Pipe ([04.1983 - ] (8304- )1W)
17509-58010	Clamp No.1, Exhaust Pipe Center, Front	Exhaust Pipe ([04.1983 - ] (8304- )1W)
17562-58010	Cushion, Exhaust Pipe Center, Center	Exhaust Pipe ([04.1983 - ] (8304- )1W)
17571-78010	Bracket, Exhaust Pipe Front (For Front)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
17572-56080	Bracket, Exhaust Pipe, Center	Exhaust Pipe ([04.1983 - ] (8304- )1W)
17575-78010	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
17576-56020	Clamp No.1, Exhaust Pipe Center, Center	Exhaust Pipe ([04.1983 - ] (8304- )1W)
90117-08020	Bolt Or Ring, Exhaust Pipe Center, Front	Exhaust Pipe ([04.1983 - ] (8304- )1W)
90179-10010	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([04.1983 - ] (8304- )1W)
90917-06005	Gasket, Exhaust Pipe	Exhaust Pipe ([04.1983 - ] (8304- )1W)
90917-06042	Gasket, Exhaust Pipe	Exhaust Pipe ([04.1983 - ] (8304- )1W)
91511-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
91611-61035	BOLT	Exhaust Pipe ([04.1983 - ] (8304- )1W)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
94110-40800	Nut(For Steering Damper)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
94120-40800	Nut(For Clutch Pedal Stopper)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
94130-00802	Nut, No.1 (For Center Support Bearing)	Exhaust Pipe ([04.1983 - ] (8304- )1W)
94180-40800	NUT	Exhaust Pipe ([04.1983 - ] (8304- )1W)
94180-41000	Nut	Exhaust Pipe ([04.1983 - ] (8304- )1W)
