Search › Model › WNB10
WNB10

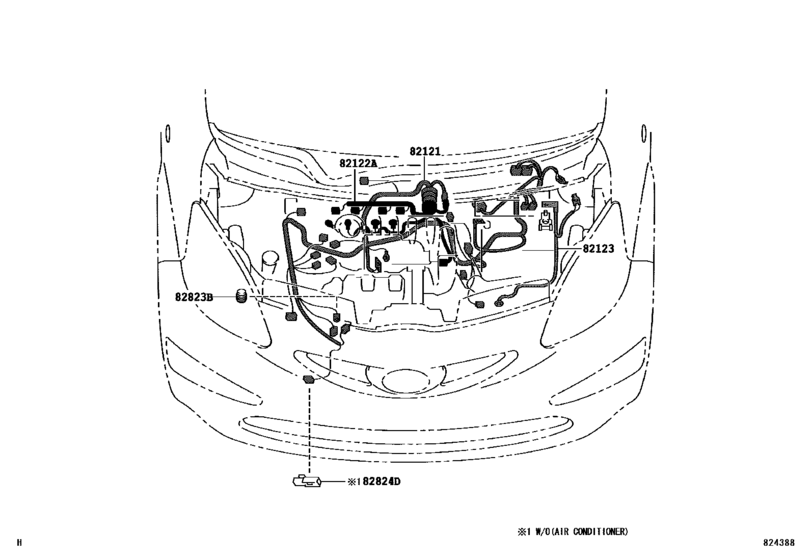

Wiring & Clamp ([05.2005 - ] ENGINE (0505- )WNB10..RHD) 5
| # | OEM | Part name |
|---|---|---|
| 82121 | 82121-YV080 | Wire, Engine |
| 82121 | 82121-YV081 | Wire, Engine |
| 82123 | 82123-0H020 | Wire, Engine, No.3 |
| 82823 | 82823-YV010 | Cap, Terminal, No.3 |
| 82824 | 82824-0H080 | Connector, Wiring Harness |
| OEM | Part name | Category |
|---|---|---|
| 82121-YV080 | Wire, Engine | Wiring & Clamp ([05.2005 - ] ENGINE (0505- )WNB10..RHD) |
| 82121-YV081 | Wire, Engine | Wiring & Clamp ([05.2005 - ] ENGINE (0505- )WNB10..RHD) |
| 82123-0H020 | Wire, Engine, No.3 | Wiring & Clamp ([05.2005 - ] ENGINE (0505- )WNB10..RHD) |
| 82823-YV010 | Cap, Terminal, No.3 | Wiring & Clamp ([05.2005 - ] ENGINE (0505- )WNB10..RHD) |
| 82824-0H080 | Connector, Wiring Harness | Wiring & Clamp ([05.2005 - ] ENGINE (0505- )WNB10..RHD) |
