Search › Model › WNB10

WNB10

Toyota AYGO · 2005 · 1,763 parts · 141 categories

1,763 items

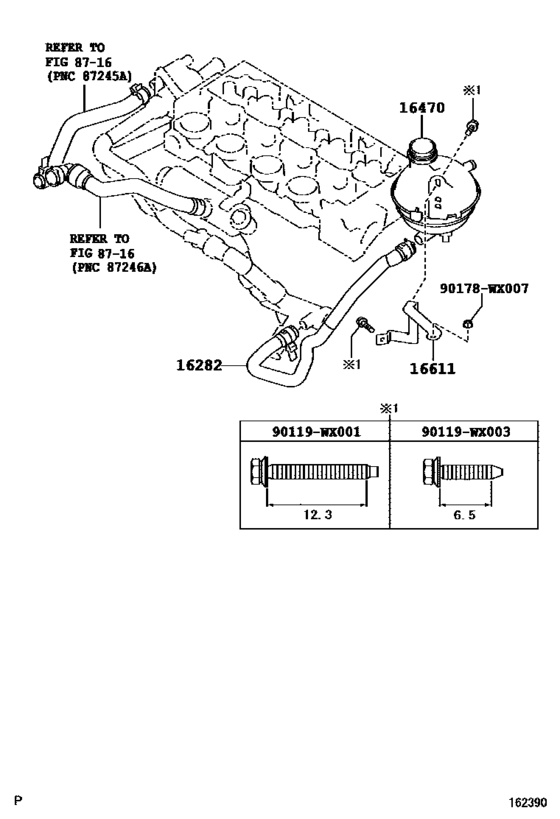

Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV) 22

#	OEM	Part name
16282	16282-YV010	Hose, Water By-Pass, No.5
16360	16362-8EA02	Fan Assy, W/motor
16360	16362-8EA03	Fan Assy, W/motor
16400	16400-YV010	Radiator Assy
16400	16400-YV020	Radiator Assy
16470	16470-YV011	Tank Assy, Radiator Reserve
16470	16261-YV011	Hose, Water By-Pass
16470	16264-YV011	Hose, Water By-Pass, No.2
16470	16470-YV012	Tank Assy, Radiator Reserve
16470	16581-YV011	Clamp, Hose(For Water Hose)
16523	16523-0Q010	Cushion, Sub-Radiator Support
16571	16571-YV010	Hose, Radiator, Inlet
16572	16572-YV010	Hose, Radiator, Outlet
16611	16611-YV010	Bracket, Radiator Reserve Tank
16711	16711-8EA00	Shroud, Fan
16711	16711-8EA01	Shroud, Fan
90119	90119-WX001	New Genuine Part
90119	90119-WX003	New Genuine Part
90119	90119-W0099	New Genuine Part
90178	90178-WX007	New Genuine Part
90480	90480-W0001	Support, Radiator, Lower
9006931000	90069-31000	New Genuine Part

OEM	Part name	Category
16261-YV011	Hose, Water By-Pass	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16264-YV011	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16282-YV010	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16362-8EA02	Fan Assy, W/motor	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16362-8EA03	Fan Assy, W/motor	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16400-YV010	Radiator Assy	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16400-YV020	Radiator Assy	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16470-YV011	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16470-YV012	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16523-0Q010	Cushion, Sub-Radiator Support	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16571-YV010	Hose, Radiator, Inlet	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16572-YV010	Hose, Radiator, Outlet	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16581-YV011	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16611-YV010	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16711-8EA00	Shroud, Fan	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
16711-8EA01	Shroud, Fan	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
90069-31000	New Genuine Part	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
90119-W0099	New Genuine Part	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
90119-WX001	New Genuine Part	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
90119-WX003	New Genuine Part	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
90178-WX007	New Genuine Part	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
90480-W0001	Support, Radiator, Lower	Radiator & Water Outlet ([05.2005 - ] (0505- )2WZTV)
