Search › Model › WNB10
WNB10

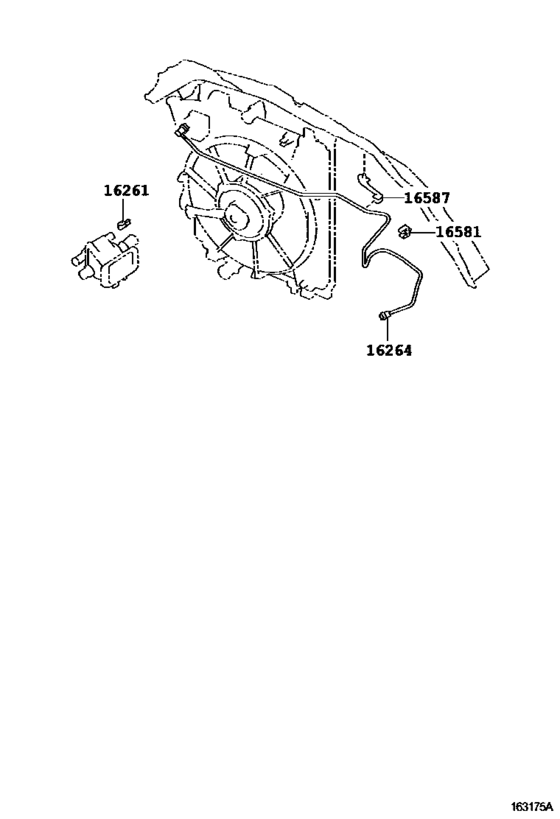

Radiator & Water Outlet ([03.2007 - ] (0703- )2WZTV) 7
| # | OEM | Part name |
|---|---|---|
| 16261 | 16261-YV010 | Hose, Water By-Pass |
| 16261 | 16261-YV011 | Hose, Water By-Pass |
| 16264 | 16264-YV010 | Hose, Water By-Pass, No.2 |
| 16264 | 16264-YV011 | Hose, Water By-Pass, No.2 |
| 16581 | 16581-YV010 | Clamp, Hose(For Water Hose) |
| 16581 | 16581-YV011 | Clamp, Hose(For Water Hose) |
| 16587 | 16587-YV010 | Clamp, Radiator Pipe |
| OEM | Part name | Category |
|---|---|---|
| 16261-YV010 | Hose, Water By-Pass | Radiator & Water Outlet ([03.2007 - ] (0703- )2WZTV) |
| 16261-YV011 | Hose, Water By-Pass | Radiator & Water Outlet ([03.2007 - ] (0703- )2WZTV) |
| 16264-YV010 | Hose, Water By-Pass, No.2 | Radiator & Water Outlet ([03.2007 - ] (0703- )2WZTV) |
| 16264-YV011 | Hose, Water By-Pass, No.2 | Radiator & Water Outlet ([03.2007 - ] (0703- )2WZTV) |
| 16581-YV010 | Clamp, Hose(For Water Hose) | Radiator & Water Outlet ([03.2007 - ] (0703- )2WZTV) |
| 16581-YV011 | Clamp, Hose(For Water Hose) | Radiator & Water Outlet ([03.2007 - ] (0703- )2WZTV) |
| 16587-YV010 | Clamp, Radiator Pipe | Radiator & Water Outlet ([03.2007 - ] (0703- )2WZTV) |
