Search › Model › WNB10
WNB10

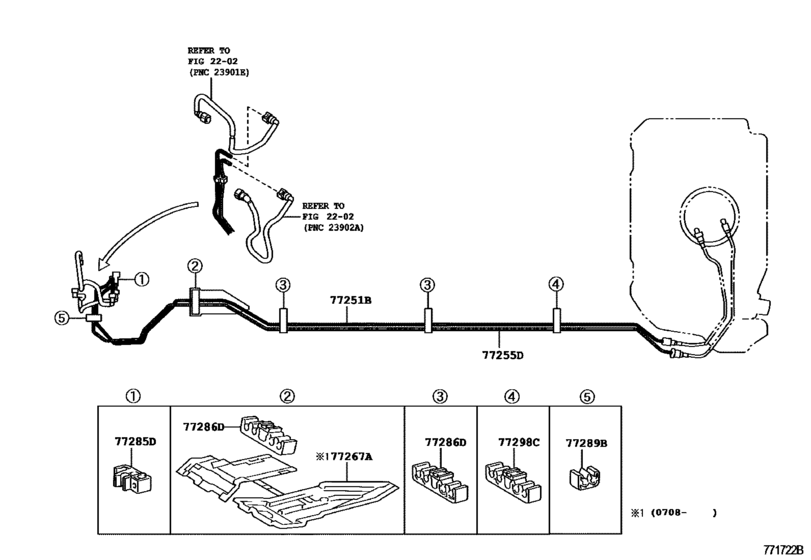

Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) 8
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-0H020 | Tube, Fuel Main |
| 77255 | 77255-0H010 | Tube, Fuel Return |
| 77267 | 77267-0H010 | Protector, Fuel Tube, No.2 |
| 77285 | 77285-0H010 | Clamp, Fuel Tube, No.1 |
| 77286 | 77286-0H010 | Clamp, Fuel Tube, No.2 |
| 77289 | 77289-0H010 | Clamp, Fuel Tube, No.3 |
| 77289 | 77289-0H020 | Clamp, Fuel Tube, No.3 |
| 77298 | 77298-0H010 | Clamp, Fuel Tube, No.4 |
| OEM | Part name | Category |
|---|---|---|
| 77251-0H020 | Tube, Fuel Main | Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) |
| 77255-0H010 | Tube, Fuel Return | Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) |
| 77267-0H010 | Protector, Fuel Tube, No.2 | Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) |
| 77285-0H010 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) |
| 77286-0H010 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) |
| 77289-0H010 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) |
| 77289-0H020 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) |
| 77298-0H010 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([05.2005 - ] FUEL TUBE (0505- )WNB10) |
