WNB10

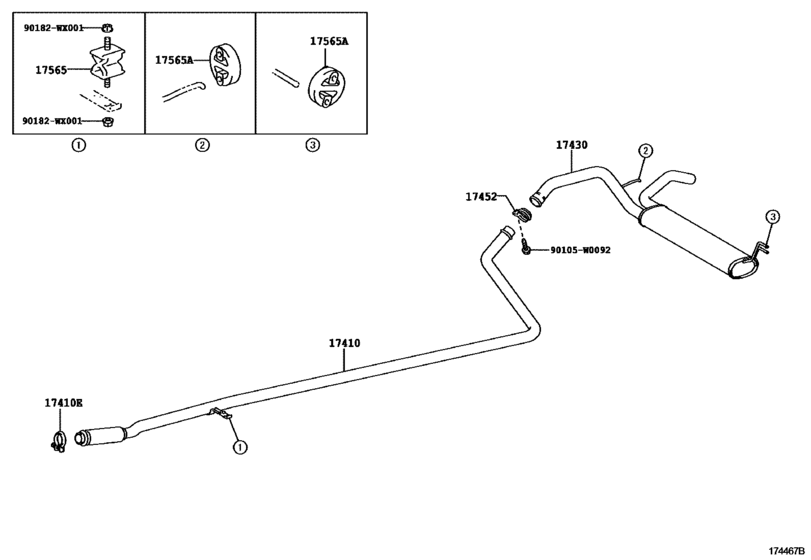

Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) 8
| # | OEM | Part name |
|---|---|---|
| 17410 | 17410-YV010 | Pipe Assy, Exhaust, Front |
| 17410 | 90461-WX001 | Clamp No.1, Exhaust Pipe Front (For Front) |
| 17430 | 17430-YV010 | Pipe Assy, Exhaust, Tail |
| 17452 | 90461-WX002 | Clamp, Exhaust Pipe |
| 17565 | 17565-YV010 | Support, Exhaust Pipe, No.5 |
| 17565 | 17565-0Q010 | Support, Exhaust Pipe, No.4 |
| 90105 | 90105-W0092 | New Genuine Part |
| 90182 | 90182-WX001 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 17410-YV010 | Pipe Assy, Exhaust, Front | Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) |
| 17430-YV010 | Pipe Assy, Exhaust, Tail | Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) |
| 17565-0Q010 | Support, Exhaust Pipe, No.4 | Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) |
| 17565-YV010 | Support, Exhaust Pipe, No.5 | Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) |
| 90105-W0092 | New Genuine Part | Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) |
| 90182-WX001 | New Genuine Part | Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) |
| 90461-WX001 | Clamp No.1, Exhaust Pipe Front (For Front) | Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) |
| 90461-WX002 | Clamp, Exhaust Pipe | Exhaust Pipe ([05.2005 - ] (0505- )2WZTV) |
