Search › Model › WK11
WK11

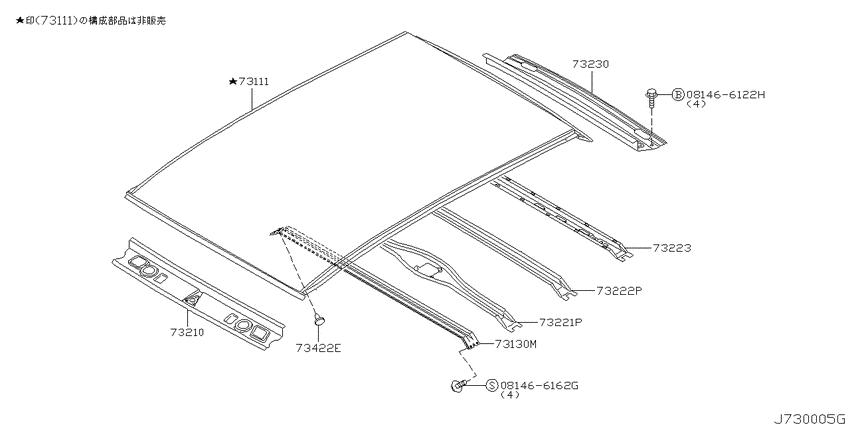

Roof panel & fitting (2000-10-01 ~ ; W) 8
| # | OEM | Part name |
|---|---|---|
| 73111 | 73112-AP530 | Roof |
| 73130 | 73256-AP530 | Reinforce Assy-Roof |
| 73210 | 73211-AP530 | Rail-Front Roof |
| 73221 | 73252-AP500 | Bow-Roof, Center |
| 73222 | 73262-AP500 | Bow-Roof, Rear |
| 73223 | 73272-AP500 | Bow-Roof, No 4 |
| 73230 | 73230-AP530 | Rail-Rear Roof |
| 73422 | 01553-02081 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 01553-02081 | CLIP | Roof panel & fitting (2000-10-01 ~ ; W) |
| 73112-AP530 | Roof | Roof panel & fitting (2000-10-01 ~ ; W) |
| 73211-AP530 | Rail-Front Roof | Roof panel & fitting (2000-10-01 ~ ; W) |
| 73230-AP530 | Rail-Rear Roof | Roof panel & fitting (2000-10-01 ~ ; W) |
| 73252-AP500 | Bow-Roof, Center | Roof panel & fitting (2000-10-01 ~ ; W) |
| 73256-AP530 | Reinforce Assy-Roof | Roof panel & fitting (2000-10-01 ~ ; W) |
| 73262-AP500 | Bow-Roof, Rear | Roof panel & fitting (2000-10-01 ~ ; W) |
| 73272-AP500 | Bow-Roof, No 4 | Roof panel & fitting (2000-10-01 ~ ; W) |
