Search › Model › WK11
WK11

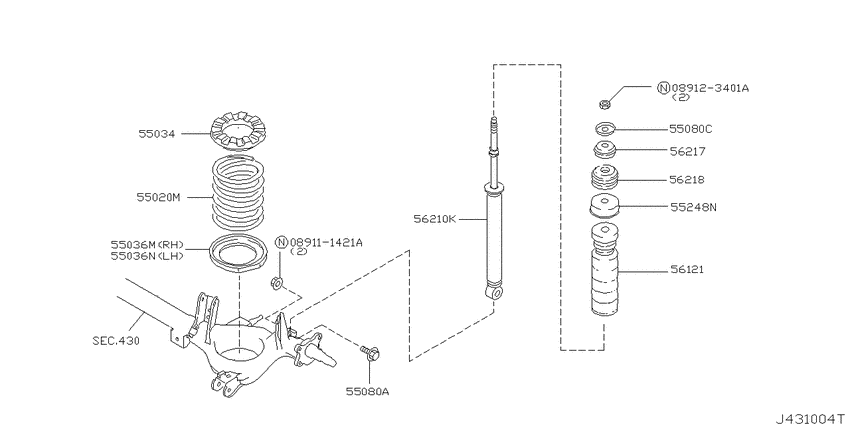

Rear suspension (1999-11-01 ~ ; ショツクアブソーバー; CG10DE +CGA3DE) 6
| # | OEM | Part name |
|---|---|---|
| 55020 | 55020-AP500 | Spring-Rear Suspension |
| 55034 | 55034-41B01 | Seat-Rubber, Rear Spring Upper |
| 55036 | 55032-41B00 | Seat-Rubber, Rear Spring Rh |
| 55036 | 55033-41B00 | Seat-Rubber, Rear Spring Lh |
| 55080 | 01115-00551 | BOLT |
| 56210 | 56210-AN225 | Absorber Kit-Shock, Rear |
| OEM | Part name | Category |
|---|---|---|
| 01115-00551 | BOLT | Rear suspension (1999-11-01 ~ ; ショツクアブソーバー; CG10DE +CGA3DE) |
| 55020-AP500 | Spring-Rear Suspension | Rear suspension (1999-11-01 ~ ; ショツクアブソーバー; CG10DE +CGA3DE) |
| 55032-41B00 | Seat-Rubber, Rear Spring Rh | Rear suspension (1999-11-01 ~ ; ショツクアブソーバー; CG10DE +CGA3DE) |
| 55033-41B00 | Seat-Rubber, Rear Spring Lh | Rear suspension (1999-11-01 ~ ; ショツクアブソーバー; CG10DE +CGA3DE) |
| 55034-41B01 | Seat-Rubber, Rear Spring Upper | Rear suspension (1999-11-01 ~ ; ショツクアブソーバー; CG10DE +CGA3DE) |
| 56210-AN225 | Absorber Kit-Shock, Rear | Rear suspension (1999-11-01 ~ ; ショツクアブソーバー; CG10DE +CGA3DE) |
