WK11

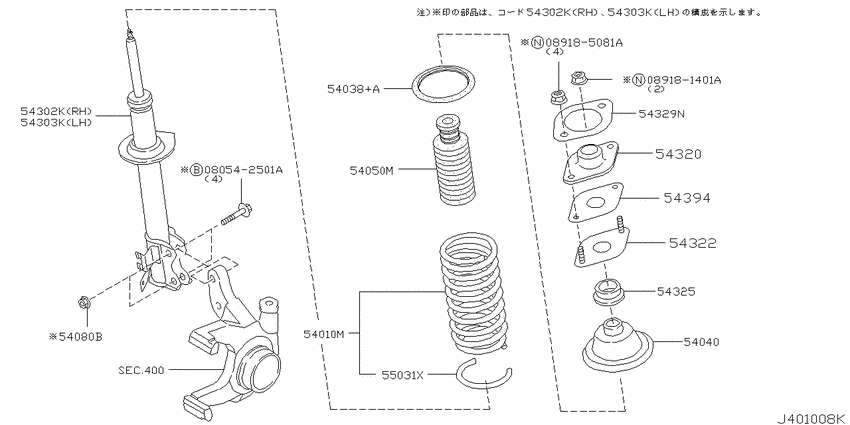

Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) 9
| # | OEM | Part name |
|---|---|---|
| 54010 | 54010-AN013 | Spring-Front |
| 54010 | 54010-AN022 | Spring-Front |
| 54302 | 54302-41B88 | Strut Kit-Front Suspension, Rh |
| 54303 | 54303-41B88 | Strut Kit-Front Suspension, Lh |
| 54320 | 54320-2U006 | Insulator Assy-Strut Mounting |
| 54320 | 54320-41B05 | Insulator Assy-Strut Mounting |
| 55031 | 55018-2U001 | Tube-Rear Spring |
| 80542501 | 08054-2501A | Bolt-hexagon |
| 89185081 | 08918-5081A | ナツト,フランジ |
| OEM | Part name | Category |
|---|---|---|
| 08054-2501A | Bolt-hexagon | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
| 08918-5081A | ナツト,フランジ | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
| 54010-AN013 | Spring-Front | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
| 54010-AN022 | Spring-Front | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
| 54302-41B88 | Strut Kit-Front Suspension, Rh | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
| 54303-41B88 | Strut Kit-Front Suspension, Lh | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
| 54320-2U006 | Insulator Assy-Strut Mounting | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
| 54320-41B05 | Insulator Assy-Strut Mounting | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
| 55018-2U001 | Tube-Rear Spring | Front suspension (2000-10-01 ~ ; ストラツト; CG10DE +CGA3DE) |
