Search › Model › WK11
WK11

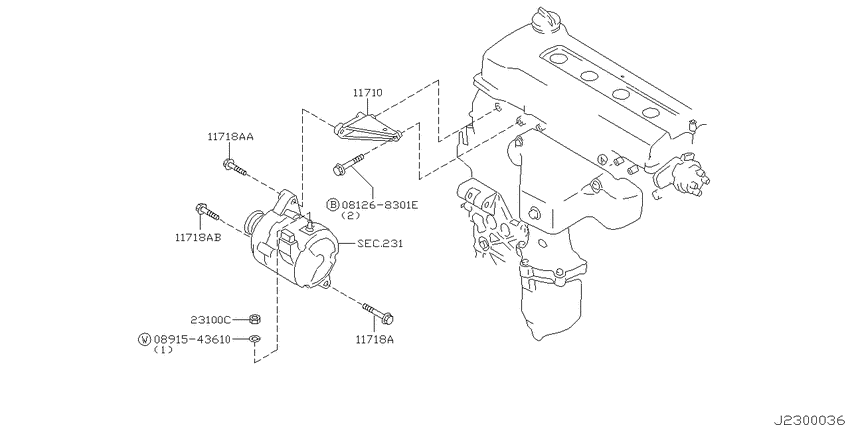

Alternator fitting (1999-11-01 ~ ; CGA3DE) 5
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-41B02 | Bracket-Alternator |
| 11718 | 01121-05901 | BOLT |
| 11718 | 01121-05891 | BOLT |
| 81268301 | 08126-8301E | Bolt-hexagon |
| 891543610 | 08915-43610 | ワツシヤ-,プレ-ン |
| OEM | Part name | Category |
|---|---|---|
| 01121-05891 | BOLT | Alternator fitting (1999-11-01 ~ ; CGA3DE) |
| 01121-05901 | BOLT | Alternator fitting (1999-11-01 ~ ; CGA3DE) |
| 08126-8301E | Bolt-hexagon | Alternator fitting (1999-11-01 ~ ; CGA3DE) |
| 08915-43610 | ワツシヤ-,プレ-ン | Alternator fitting (1999-11-01 ~ ; CGA3DE) |
| 11710-41B02 | Bracket-Alternator | Alternator fitting (1999-11-01 ~ ; CGA3DE) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 4
- Category
- 238
- Collected
- 2026-07-26
